Product data sheets
Specifications and overview for every model in the line.

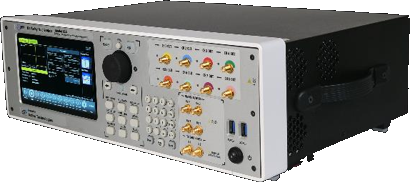

Model 686
2/4 ch · 20 GS/s · 10 GHz · 14-bit. The fastest 14-bit AWG in the line.

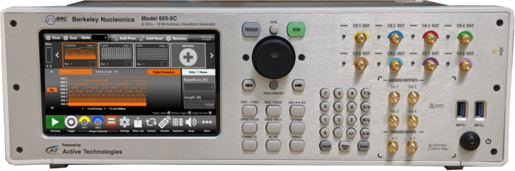

Model 685
2/4/8 ch · 6.16 GS/s · 10 GHz · 16-bit.
Model 685C
2/4/8 ch · 3 GS/s · 2 GHz · 16-bit.

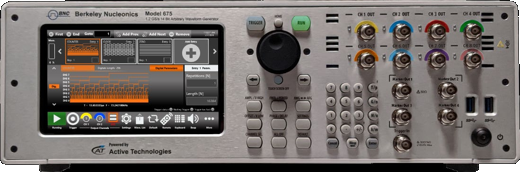

Model 675
2/4/8 ch · 1.2 GS/s · 318 MHz · 16-bit, three-mode Rider.

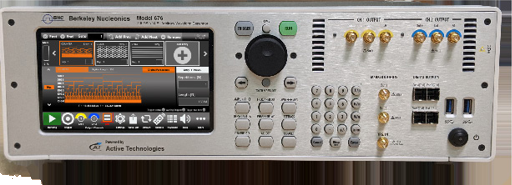

Model 676
Rider series · 16-bit arbitrary waveform and function generator.

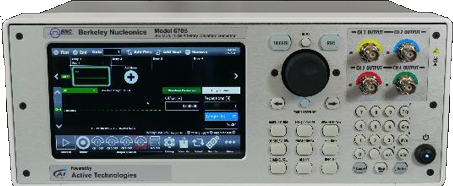

Model 670C
2/4 ch · 600 MS/s · 318 MHz · 16-bit.

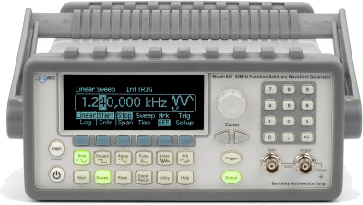

Model 645
1 ch · 125 MS/s · 20 MHz · 16-bit, WaveCrafter.
Model A2255
2 ch · 1.25 GS/s · 250 MHz · 14-bit, compact.
Model A2085
2 ch · 1.25 GS/s · 80 MHz · 14-bit, compact.
User manuals
Operating manuals. Additional user and programming manuals are on the downloads page.
Model 686 TrueArb User Manual
Full operating manual for the Model 686 in TrueArb mode. Preliminary HTML draft.
Model 675 TrueArb User Manual
Full operating manual for the Model 675. Preliminary HTML draft.
All User & Programming Manuals
Every model user manual and programming manual on the Berkeley Nucleonics downloads page.
Software & SDKs
Control software and development kits. These links open the Berkeley Nucleonics downloads.
Model 686 SDK
Software development kit for the Model 686.
Model 685 SDK
Software development kit for the Model 685.
Model 676 Simple Rider SDK
Simple Rider control SDK (670C / 675 / 676).
Model 676 Expert Rider SDK
Expert Rider control SDK.
Model 645 WaveCrafter
WaveCrafter software for the Model 645.
Application briefs
Where these generators go to work.
Replace a Tektronix AWG7000 / AWG7082C
End the double-pulse workaround: clean, DC-coupled, 16-bit output on the Model 685, with no series resistor or capacitor required.
HEL / ICF Front-End Timing
Low-jitter master-clock timing and in-firmware pulse pre-compensation for high-energy-laser and fusion front ends.
LiDAR Testing
Long, precisely timed multi-channel scenario emulation with deep memory and picosecond resolution.
Pulsed Laser Diode Test
Sub-nanosecond shaped pulses and direct current drive in one instrument.
Quantum (QKD & Sensing)
Clean, repeatable pulse and waveform generation for quantum key distribution and sensing.
Radar & EW Simulation
Wideband, agile waveform synthesis for radar target and electronic-warfare emulation.
Optics & Photonics
Arbitrary shapes, fast edges, and tight timing for optics and photonics research.
MRI & Medical Imaging
Gradient and RF pulse generation and medical-imaging signal emulation.
Radar & Fire-Control (FIRES)
Radar target generation and fire-control / threat emulation.
Serial Pattern Generation (SPG)
Serial data, PRBS, and stress patterns for high-speed serial and digital test.
Technical notes
Background reading on arbitrary waveform generation.
Model 685 AWGs in Optics & Photonics
Application note: driving modulators and pulsed laser diodes with the Model 685.
Model 685 Series AWGs for Optics, Photonics & Lasers
Optics, photonics, and laser drive techniques with the Model 685 series.
ArbRider Series Digital Option
The digital output option for the ArbRider series: LVDS pattern outputs, AT-DTTL8 / AT-LVDS-SMA8.
Nuts & Bolts of Arbitrary Waveform Generators
Berkeley Nucleonics reference on arbitrary waveform generation techniques.
