High-Voltage Pulse Generator

PVX-4110 ±10,000 V High Voltage Pulse Generator

The PVX-4110 produces fast, flat-topped high voltage pulses to 10,000 V into capacitive loads. Optimized for deflection plates, extraction grids, Pockels cells, and Q-switches, it pairs sub-60 ns edges with pulse widths from under 200 ns out to DC, and built-in voltage and current monitors that remove the need for an external high voltage scope probe.

Product Data Sheet · Preliminary · Specifications subject to verification against the published BNC datasheet
Berkeley Nucleonics DEI PVX-4110 high voltage pulse generator front panel

1Overview

The PVX-4110 is a high voltage pulse generator from the Directed Energy Division of Berkeley Nucleonics. It generates clean, fast pulse waveforms to 10,000 V and is optimized for high impedance capacitive loads. That makes it well suited to driving extraction grids and deflection plates for the electrostatic modulation of particle beams in time-of-flight mass spectrometers and accelerators.

The same robust design serves a wide range of pulsing and gating tasks. Typical loads include power tube grids, Pockels cells and Q-switches, acoustic transducers, microchannel plates, photomultiplier tubes, and image intensifiers. Across these applications the value of the PVX-4110 is consistent pulse fidelity, so the pulser improves rather than limits the performance of the system around it.

The instrument is fully self-contained. All control and protection logic, support power, energy storage, and the output network are built in. It connects directly to the load and does not need series or shunt resistors, an impedance-matching network, or an external capacitor bank. To run, it needs a TTL gate signal, a user-supplied high voltage DC source, and an optional second supply when the output is biased away from ground.

DEI PVX-4110 rackmount high voltage pulse generator front panel with status LEDs and BNC monitor outputs
PVX-4110 front panel: status LEDs for output enable, over-current, control error, gated, and power, with front-panel I-MON, V-MON, and GATE connectors.

2How It Works

The PVX-4110 is a direct-coupled, air-cooled, solid-state half-bridge, often called a totem-pole output stage. Two high voltage switches sit in series between a user-supplied high rail (VHigh) and low rail (VLow). The gate signal decides which rail is connected to the output. When the gate is high, VHigh is switched to the output; when the gate is low, VLow is switched to the output. The pulse amplitude is therefore set by the difference between the two supply voltages, and the pulse width and repetition rate are set by the gate.

Driving the output from both rails gives flexible polarity. With VLow at ground, the unit produces positive pulses from ground to +10,000 V. With VHigh at ground, it produces negative pulses from ground to −10,000 V. To make a negative-going pulse from a normally-high baseline, invert the gate so the input sits high until the unit is pulsed; when the gate goes low, VLow connects to the output and the result is a negative-going pulse. The output can also be offset from ground by setting both supplies, anywhere from −10,000 V to +10,000 V, with a maximum supply differential of 10,000 V.

The totem-pole topology gives equally fast rise and fall times, low power dissipation, and virtually no overshoot, undershoot, or ringing. Over-current detection and shut-down circuitry protect the generator against arcs and shorts in the load or the interconnect cable.

Power budget. When driving a capacitive load, dissipation follows C·V²·F, where C is the total load capacitance (load, cable, and the roughly 50 pF internal capacitance of the PVX-4110), V is the pulse voltage, and F is the repetition frequency. With a maximum dissipation of about 100 W, this relationship sets the achievable combination of load, voltage, and rate, and approximates the high voltage supply current the application will require. For operation above 10 kHz, contact Berkeley Nucleonics.

3Specifications

All output specifications are measured into a 50 pF load connected with 4 ft of RG-11 cable, at 10,000 V output. The PVX-4110 can drive loads from a few picofarads to several hundred picofarads, limited by its maximum power dissipation. It can also drive resistive or inductive loads within limits; contact Berkeley Nucleonics for application assistance.

OutputSpecification
Maximum value±10,000 V (VHigh − VLow)
Minimum value0 V
Means of adjustmentControlled by power supply input voltages
Pulse rise and fall time<60 ns (10% to 90%); ~54 ns typical at 10,000 V into 120 pF
Pulse width<200 ns to DC, controlled by input gate (~136 ns typical minimum at 10,000 V into 150 pF)
Pulse recurrence frequency (PRF)Single-shot to 10 kHz, controlled by input gate
Max. average power100 W (VHigh + VLow)
Max. duty cycleContinuous
Droop<1%
Over/undershoot<5%
Jitter<1 ns shot-to-shot
Output connectorLEMO ERA.3S.415.CTL, rear panel
Output cable4 ft RG-11
Input DC voltageSpecification
+VIN (VHigh) absolute max.+10,000 V
+VIN (VHigh) absolute min.−10,000 V
+VIN (VHigh) relative max.+10,000 V over VLow voltage
+VIN (VHigh) relative min.VLow voltage
−VIN (VLow) absolute max.+10,000 V
−VIN (VLow) absolute min.−10,000 V (only needed when biasing the output)
Input connectorsLEMO ERA.3S.415.CTL, rear panel (one each for +VIN and −VIN)
Gate, monitors & generalSpecification
Gate source & connector+5 V ±1 V into 50 Ω, front-panel BNC
Voltage monitor2000:1 into 1 MΩ, BNC connector
Current monitor10 A/V into 50 Ω, BNC connector
Input AC power90–240 VAC, 50/60 Hz
Dimensions19 in W × 7.0 in H × 21.5 in D (48.25 × 17.8 × 54.6 cm)
WeightApproximately 24 lb (11 kg)
Verify. The source datasheet lists a +5 V ±1 V gate input. Confirm the gate logic level (TTL vs. +5 V) and the rear-panel LEMO output connector designation against the current published BNC datasheet before quoting.

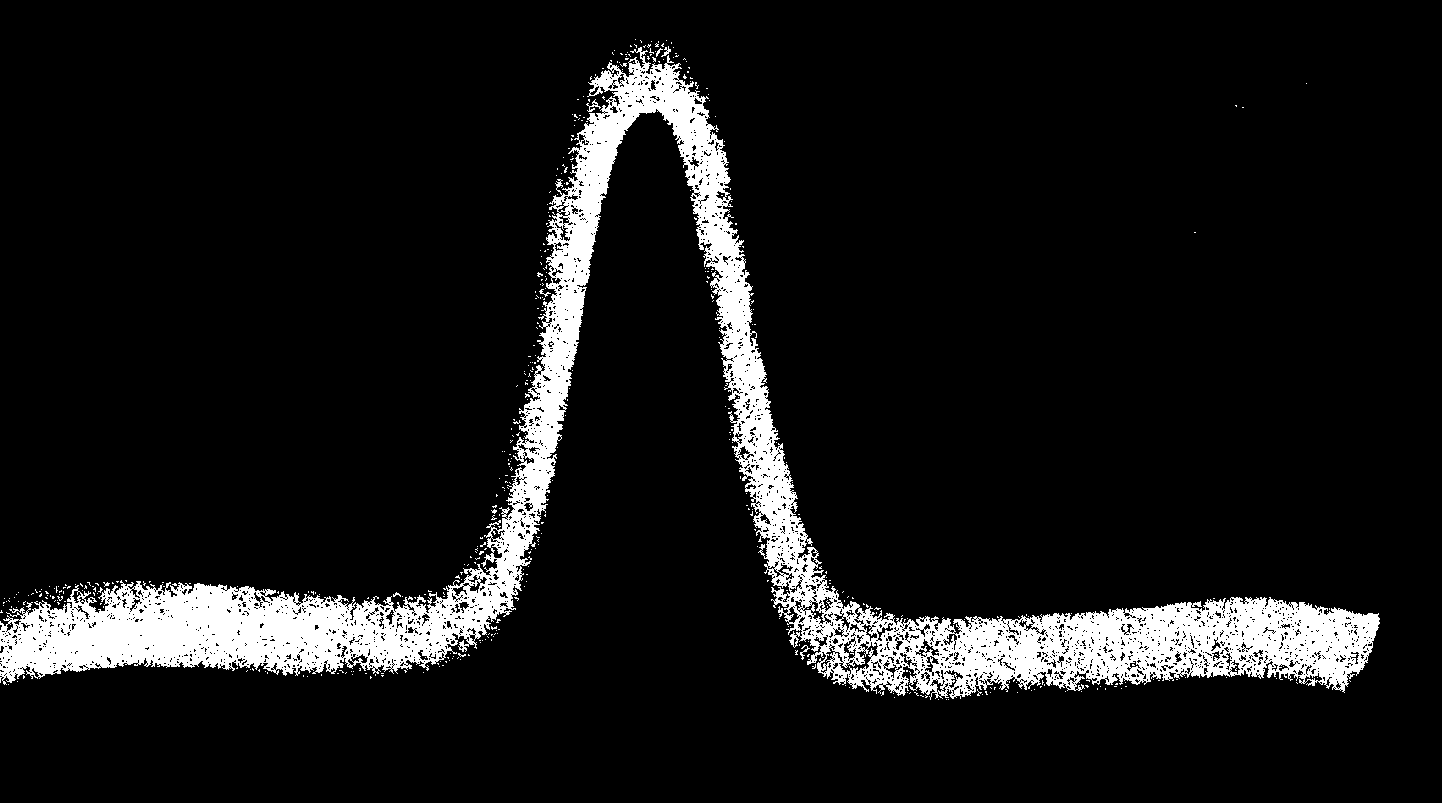

PVX-4110 typical output pulse waveform showing fast rise and fall and a flat top
Typical PVX-4110 output pulse at 10,000 V: fast leading and trailing edges with a flat top and minimal overshoot.
PVX-4110 output waveform captured on an oscilloscope at 10 kHz
Captured output waveform at 10 kHz, 10,000 V into a 120 pF load.

4Front Panel & Monitoring

Front-panel indicator LEDs report the state of the pulse generator at a glance: output enabled, over-current, control error, gated, and power. Two instrument-grade monitor outputs sit on the front panel. The voltage monitor scales the output 2000:1 into 1 MΩ, and the current monitor reports 10 A per volt into 50 Ω. Together they let an engineer view the real-time output voltage and current waveforms on a standard oscilloscope, without a high voltage scope probe.

Power and output enable controls are on the front panel. The over-current circuit shuts the output down on a fault from an arc or short, protecting both the pulser and the load. High voltage input and output connections are on the rear panel to keep the operator side of the instrument at low voltage.

5Remote & Gate Control

Pulse timing is driven entirely by the gate. The gate input accepts a +5 V ±1 V signal into 50 Ω on a front-panel BNC connector, and it sets both the pulse width and the repetition rate. Output amplitude is set separately by the user-supplied high voltage DC supplies, so timing and amplitude are controlled independently.

Inverting the gate inverts the output, which is the standard way to produce a negative-going pulse from a normally-high baseline. For integration into automated or interlocked systems, contact Berkeley Nucleonics to confirm the available remote and status options for your configuration.

6Applications

  • Time-of-flight mass spectrometry. Pulsing extraction grids and deflection plates for electrostatic modulation of ion beams.
  • Accelerators and beam handling. Deflecting, gating, and kicking charged-particle beams.
  • Electro-optics. Driving Pockels cells and Q-switches in laser cavities where fast, low-jitter edges matter.
  • Detector gating. Gating microchannel plates, photomultiplier tubes, and image intensifiers.
  • Tube and transducer drive. Pulsing or gating power tube grids and acoustic transducers.

7Ordering Information

ModelDescription
PVX-4110±10,000 V high voltage pulse generator, <60 ns rise/fall, <200 ns to DC pulse width, single-shot to 10 kHz, with voltage and current monitors

The PVX-4110 requires a user-supplied high voltage DC source and a TTL-compatible gate. A second DC supply is needed only when the output is biased away from ground. Berkeley Nucleonics can advise on supply sizing from the load capacitance, pulse voltage, and repetition rate.

Contact

For a quote, configuration help, or application support, reach the Berkeley Nucleonics team.

Email: info@berkeleynucleonics.com
Phone: 800-234-7858

Request the full datasheet. This page summarizes the PVX-4110 specifications. For the complete published datasheet and a configuration tailored to your load, contact Berkeley Nucleonics.
