Model 675 Arbitrary Waveform Generator

Safety

Review the following safety precautions to avoid injury and to prevent damage to this product or to any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures.

To Avoid Fire or Personal Injury

• Use proper power cord. Use only the power cord specified for this product and certified for the country of use.
• Ground the product. This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded.
• Observe all terminal ratings. To avoid fire or shock hazard, observe all ratings and markings on the product. Consult the product manual for further ratings information before making connections to the product.
• Power disconnect. The power cord provides mains disconnect.
• Do not operate without covers. Do not operate this product with covers or panels removed.
• Do not operate with suspected failures. If you suspect that there is damage to this product, have it inspected by qualified service personnel.
• Avoid exposed circuitry. Do not touch exposed connections and components when power is present.
• Do not operate in wet or damp conditions.
• Do not operate in an explosive atmosphere.
• Keep product surfaces clean and dry.
• Provide proper ventilation. Refer to the installation instructions in the manual for details on installing the product so that it has proper ventilation.

Safety Requirements

This section contains information and warnings that must be observed to keep the instrument operating in a correct and safe condition. You are required to follow generally accepted safety procedures in addition to the safety precautions specified in this section.

Safety Symbols

Where the following symbols appear on the instrument's front or rear panels, or in this manual, they alert you to important safety considerations.

Environmental Considerations

Product End-of-Life Handling

Observe the following guidelines when recycling an instrument or component.

Equipment Recycling

Production of this equipment required the extraction and use of natural resources. The equipment may contain substances that could be harmful to the environment or to human health if improperly handled at the product's end of life. To avoid release of such substances into the environment and to reduce the use of natural resources, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.

The WEEE symbol on the instrument indicates that this product complies with the European Union's requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

Preface

This manual describes the installation and operation of the Model 675 High Performance AWG Series using the Simple TrueArb software. Basic operations and concepts are presented here. The touch screen display interface lets you create waveform scenarios in only a few screen touches.

The TrueArb technology brings AWG capabilities to the instrument, where every data point stored in memory is used to generate the output signal. The software architecture makes arbitrary waves easier to manipulate and more flexible once they have been created, and it adds sequencing features to the instrument.

Package Contents

The standard Model 675 High Performance AWG Series package includes the following:

• Model 675-2C/4C/8C Arbitrary Waveform Generator equipment
• Power Cord
• Performance/Calibration Certificate
• CE Certificate

Models

Recommended Accessories

Mechanical Characteristics

Key Features

The following list describes some of the key features of the Model 675 High Performance AWG series:

• High resolution, high sampling rate: 14 bits, 1.2 GS/s
• Output frequency versus amplitude trade off: 300 MHz, 48 V voltage window
• 3 operating modes in the same instrument: Function Generator, Arbitrary Waveform Generator, or Digital Pattern Generator
• Very long memory: up to 128 MSample per channel
• Mixed signal generation: up to 8 analog outputs plus 32 digital outputs (with the Model 675-XC-DIG8 option)
• Simple touch screen user interface to create complex waveform scenarios in a few screen touches
• Large 7 inch, 1024 x 600 capacitive touch LCD
• Touchscreen or keypad data entry
• Windows 10 operating system
• USB and LAN interfaces
• 3U case size with the option of rack mounting

Installing Your Instrument

Unpack the instrument and check that you received all items listed in the Package Contents section.

Operating Requirements

Place the instrument on a cart or bench, observing the following clearance requirements:

The instrument is intended for indoor use and should be operated in a clean, dry, nonconductive environment. Occasionally a temporary conductivity caused by condensation must be expected. This location is a typical office or home environment. Temporary condensation occurs only when the product is out of service.

Environmental Requirements

Before using this product, ensure that its operating environment is maintained within these parameters:

Power Supply Requirements

No manual voltage selection is required because the AC adapter automatically adapts to the line voltage.

Cleaning

Inspect the arbitrary waveform generator as often as operating conditions require. To clean the exterior surface, perform the following steps:

• Remove loose dust on the outside of the instrument with a lint-free cloth. Use care to avoid scratching the front panel display.
• Use a soft cloth dampened with water to clean the instrument. Use a 75% isopropyl alcohol solution as a cleaner.

Calibration

The recommended calibration interval is one year. Calibration should be performed by qualified personnel only.

Abnormal Conditions

Operate the instrument only as intended by the manufacturer. If you suspect the instrument's protection has been impaired, disconnect the power cord and secure the instrument against any unintended operation. The instrument's protection is likely to be impaired if, for example, the instrument shows visible damage or has been subjected to severe transport stresses. Proper use of the instrument depends on careful reading of all instructions and labels.

Power the Instrument On and Off

Power On

• Insert the AC power cord into the power receptacle on the rear panel.

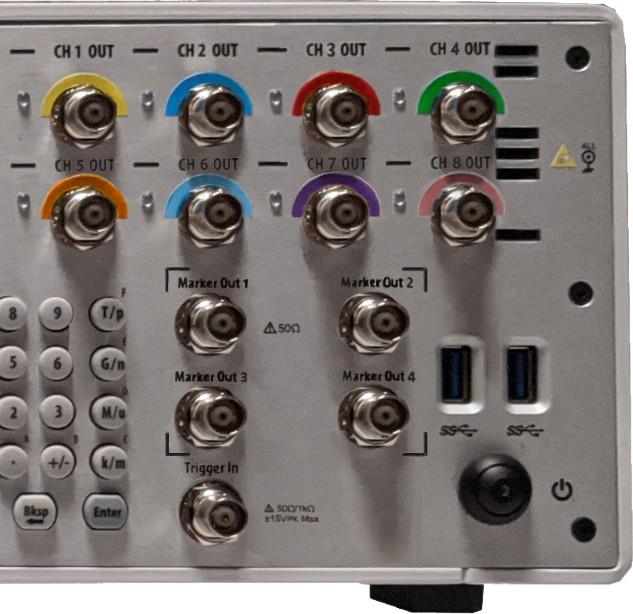

• Use the front-panel power button to power on the instrument.
• Wait until the system shows the Windows desktop.
• The Simple TrueArb software starts automatically.

Power Off

• Close the application in use.
• Press the front-panel power button to power off the instrument.

Protect Your Instrument from Misuse

Check Input and Output Connectors. When connecting a cable, be sure to distinguish the input connector from the output connectors to avoid making the wrong connection.

Obtaining the Latest Version Releases

The latest version of an optional application that you ordered with your instrument may not be installed on your instrument. The following download location is a fast and easy way to get the latest software version.

To download the latest version of software, register on the website. Go to the home page of the Berkeley Nucleonics website (www.berkeleynucleonics.com) and press the Register button in the upper right of your screen.

Install Simple TrueArb Application

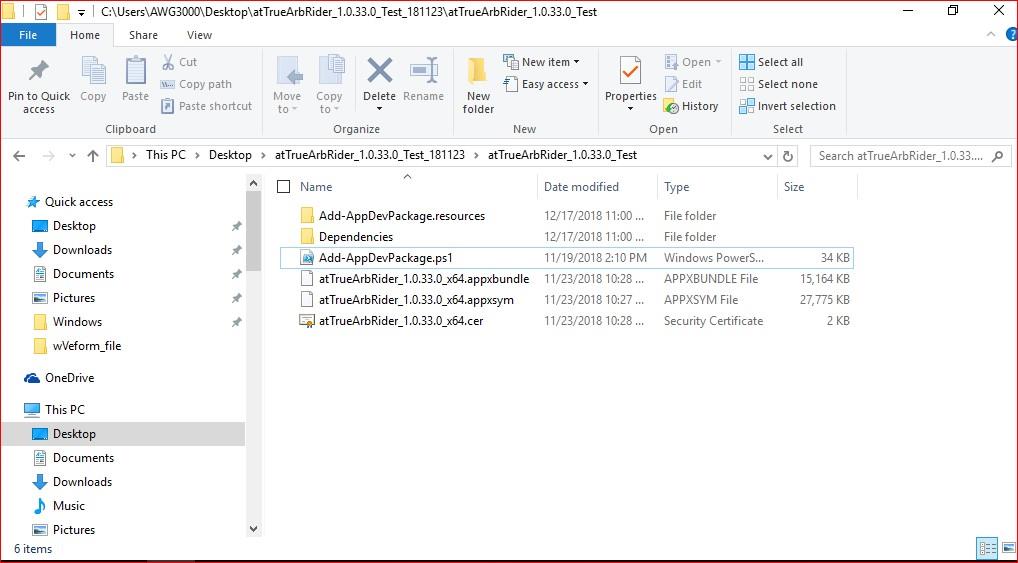

1. Download the Simple TrueArb setup package from the Berkeley Nucleonics Corporation website and decompress it to the instrument's local disk.

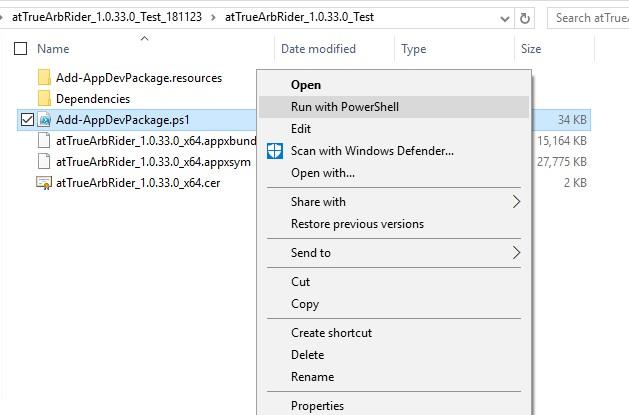

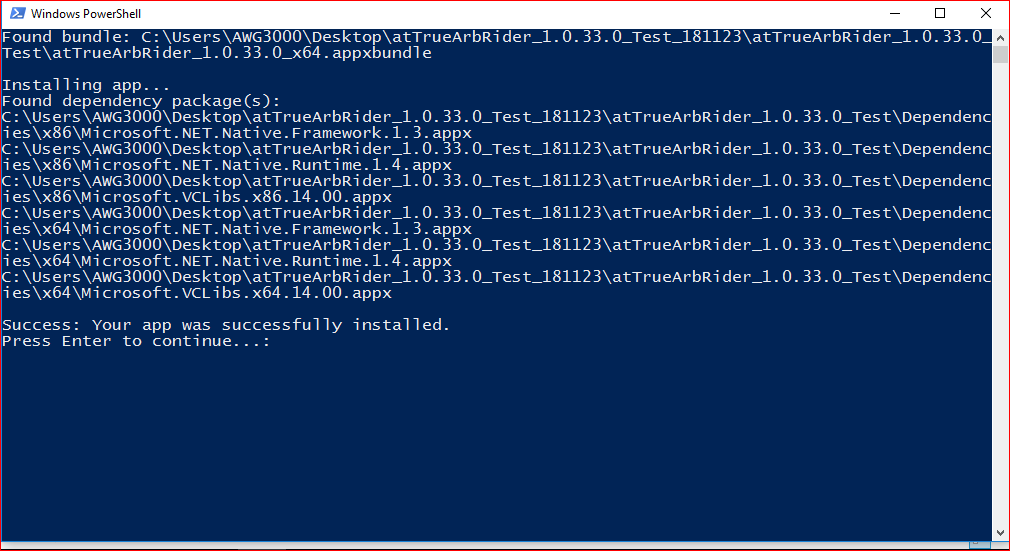

2. Right click on the "Add-AppDevPackage.ps1" file and select Run with PowerShell to start the installation.

3. When the application has been installed, press the "Enter" button to continue.

Instrument Overview

The Model 675 High Performance AWG series is offered in three chassis configurations (675-2C, 675-4C, and 675-8C) that share a common 7 inch capacitive touch screen, soft keyboard, and numeric keypad. The sections below describe the front panel, rear panel, and connectors for each model.

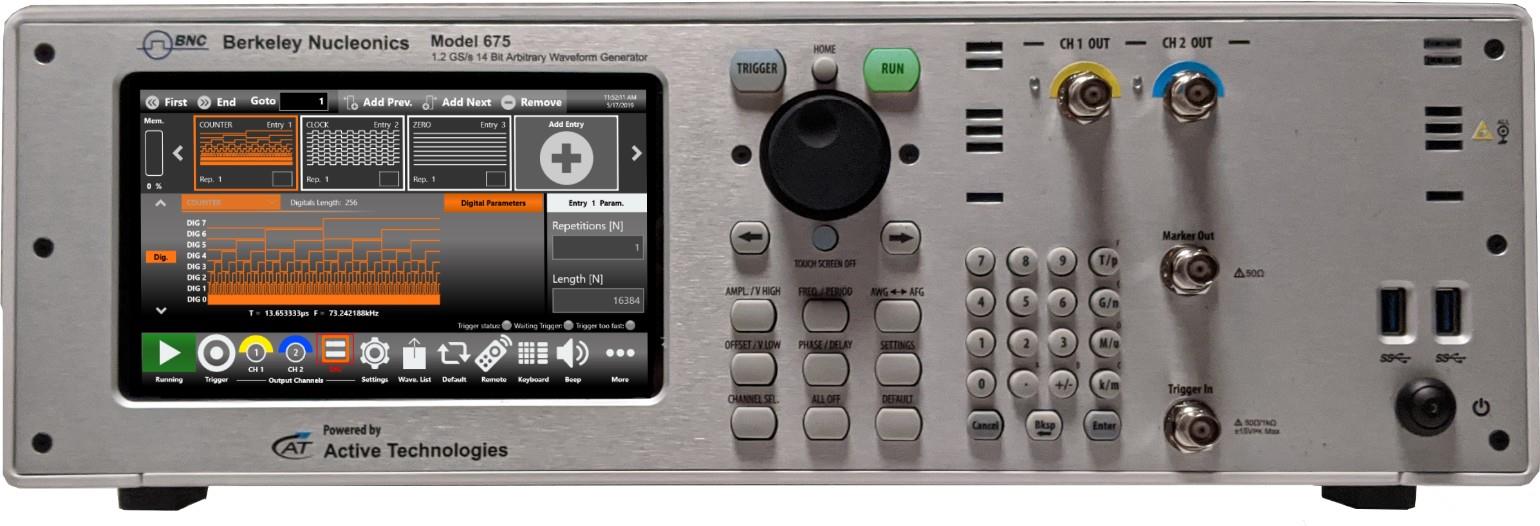

Front Panel Model 675-2C

The 675-2C front panel provides the following controls and connectors:

• 7 inch capacitive touch screen
• Soft keyboard and rotary knob
• Numeric keypad
• Trigger In and Marker Output
• Power on/off button
• Single-ended analog outputs

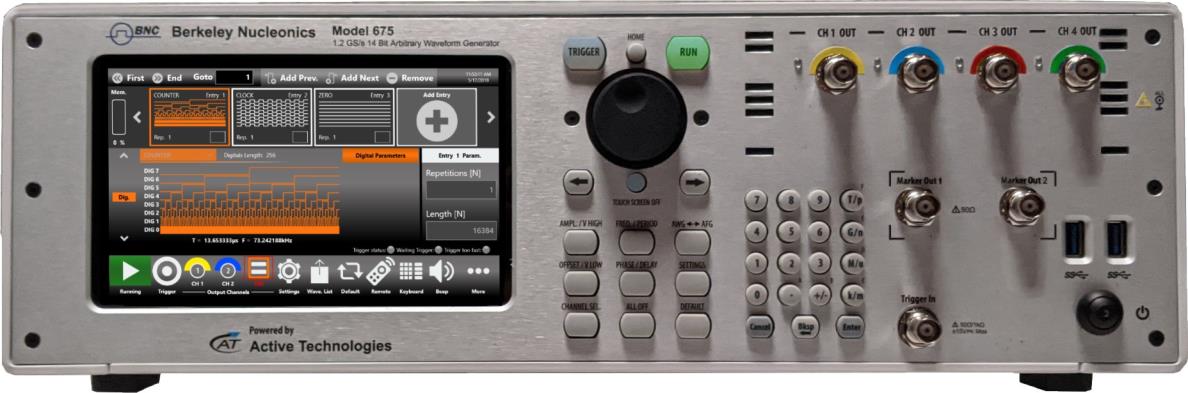

Front Panel Model 675-4C

The 675-4C front panel adds two front-panel USB 3.0 ports and a second Marker Output:

• 7 inch capacitive touch screen
• Soft keyboard and rotary knob
• Numeric keypad
• Trigger In and Marker Outputs
• 2 USB 3.0 ports
• Single-ended analog outputs

Front Panel Model 675-8C

The 675-8C front panel carries the full complement of eight analog outputs and four Marker Outputs:

• 7 inch capacitive touch screen
• Soft keyboard and rotary knob
• Numeric keypad
• Trigger In and Marker Outputs
• 2 USB 3.0 ports
• Single-ended analog outputs

The touch screen functionality and features are described in the Simple TrueArb Application section.

Analog Outputs

The Model 675 High Performance AWG instrument series provides 2, 4, or 8 analog output channels. Each output is single-ended and the connector type is a standard BNC.

Marker Outputs

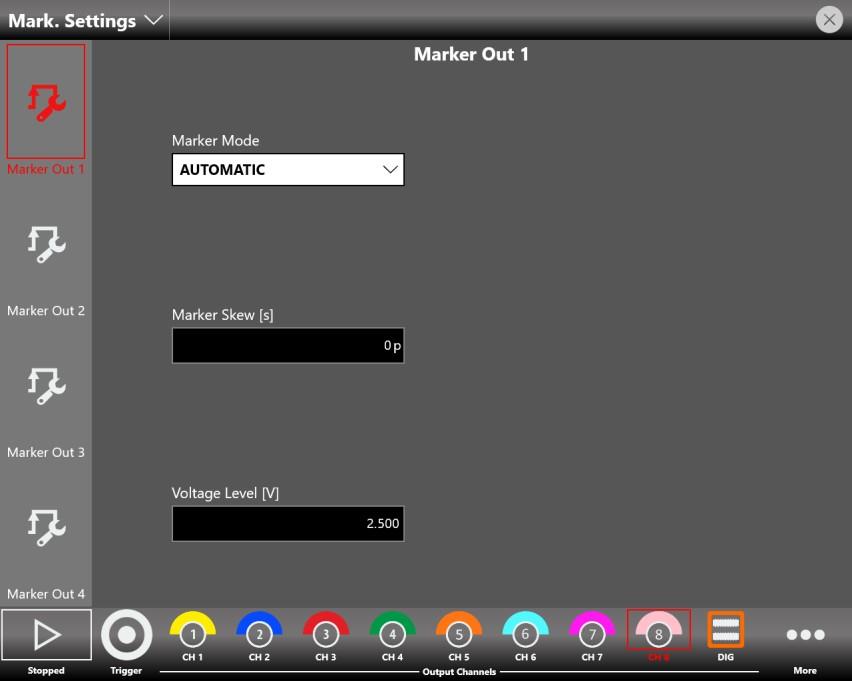

Each Marker Out is a digital output channel that generates a pulse related to the analog waveform. Its impedance is 50 ohm and the output voltage amplitude ranges from 1 V to 2.5 V into a 50 ohm load. The Marker Out generates a digital pulse synchronous with the waveform depending on the Run Mode. To set the Marker Out parameters, refer to the Marker Settings. The connector type is a standard BNC.

Important note: Marker Out 1 is linked to Channel 1 and Channel 2, Marker Out 2 is linked to Channel Out 3 and Channel Out 4, Marker Out 3 is linked to Channel Out 5 and Channel Out 6, and Marker Out 4 is linked to Channel Out 7 and Channel Out 8.

Trigger In

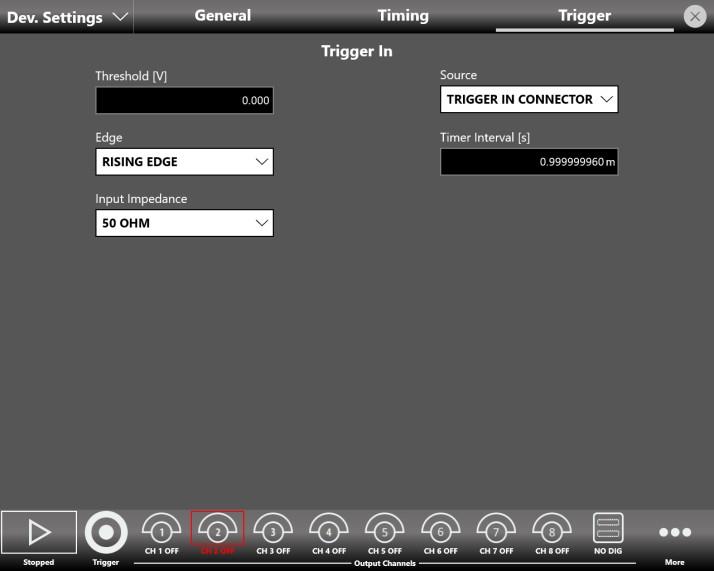

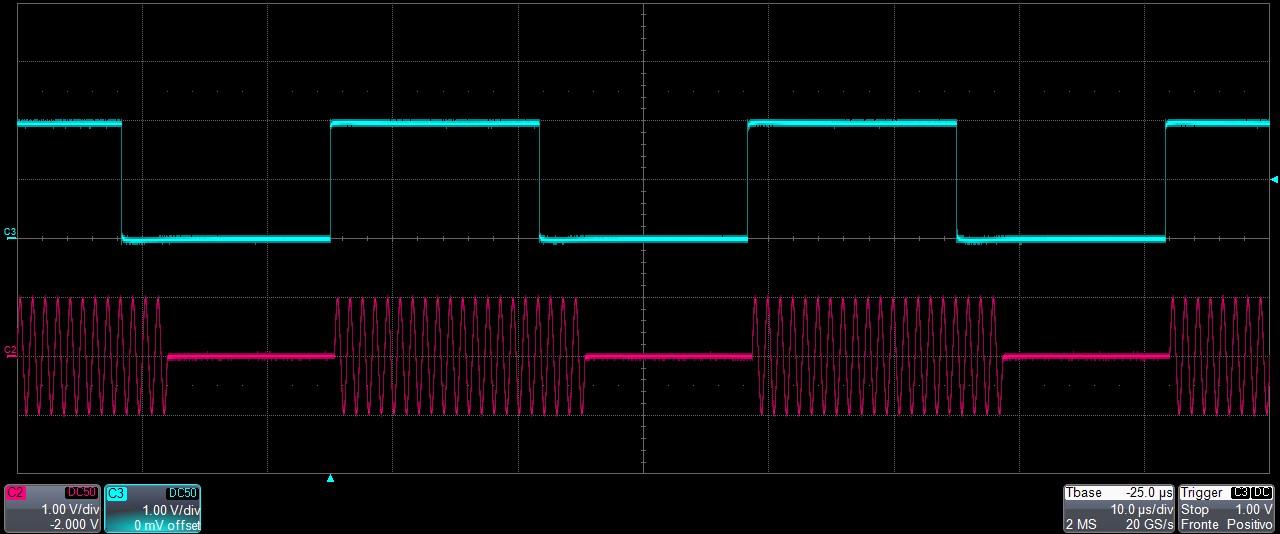

The Trigger In connector on the front panel allows the user to control generation with an external signal source. It has a selectable impedance of 1 kohm or 50 ohm. To learn how to set the trigger parameters or the Run Mode, refer to the Trigger In section. In Continuous mode the Trigger In has no effect.

Caution. Do not apply excessive inputs over ±15 Vpk to the Trigger Input connector. The instrument may be damaged.

Soft Keyboard and Rotary Knob

Most of the buttons used with the Simple TrueArb application are virtual controls on the touch screen, but a few physical buttons control basic functions such as setting amplitude, offset, and frequency. A physical numeric keypad is available on the front panel and can be used in place of the virtual numeric pad.

A central knob is available for fine tuning and adjustment during on-the-fly setup. The rotary knob changes the value in a continuous, analog fashion. The rotary push button switches the value increment between Coarse and Fine adjustment. The digit selection arrows move the selected digit left or right. You can hold the knob pressed and rotate it left or right to change the Delta increment.

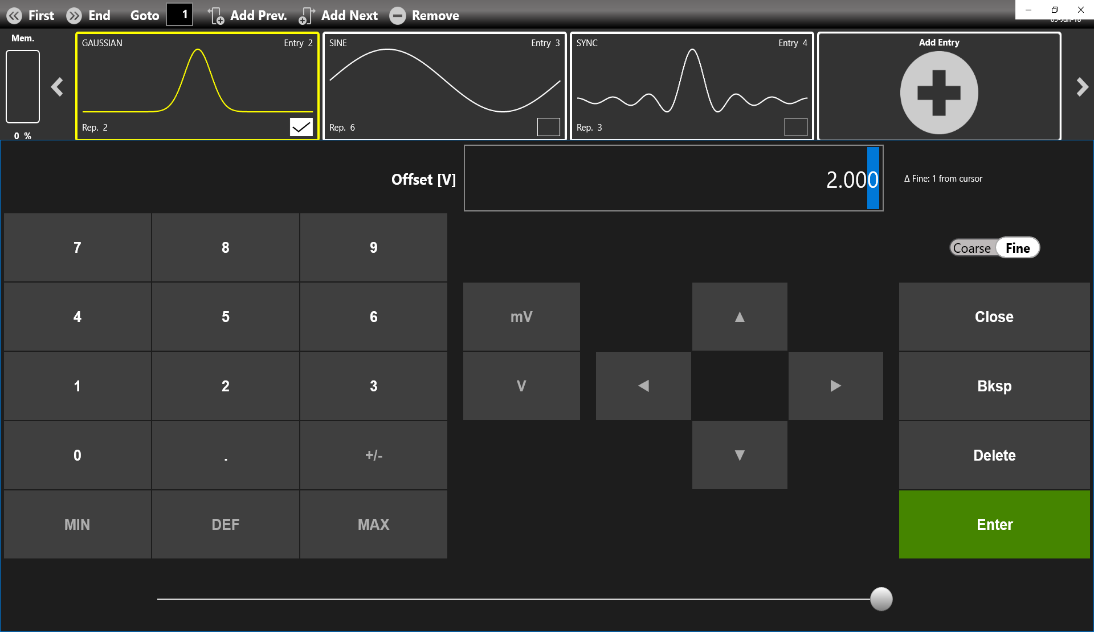

Numeric Keypad

The physical numeric keypad lets you set the parameter value and its measurement unit. Once a parameter to be edited is selected using the touch panel or the soft keyboard, each number pressed on the keypad is shown in the display. The Bksp key deletes erroneous key presses. The [+/-] key toggles the sign of the number being entered and may be pressed after terminating the entry. After the sign and the numeric portion of the desired value have been entered, pressing the multiplier button applies the parameter. The Enter button closes the virtual keyboard and applies the entered value.

When you select a parameter in the user interface, pressing a Unit Measure Range button automatically updates the available range allowed for that parameter.

For example, if you select the Frequency parameter and press k/m, the unit measure range becomes kHz; if you press M/u it becomes MHz; if you press G/n it becomes GHz; if you press T/p nothing happens because that range is not available for the selected parameter. If both units of measure of a Unit Measure Range button are available for the selected parameter (for example, Mega and Micro), pressing the range button M/u switches the range accordingly between Mega and Micro.

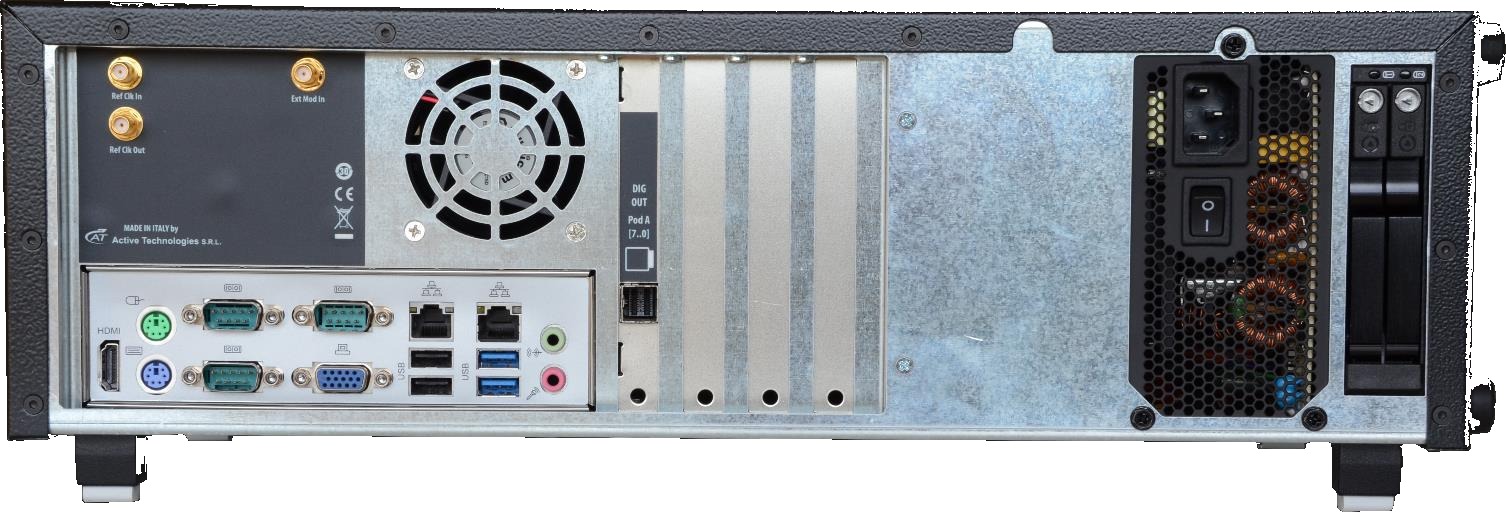

Rear Panel Model 675-2C

The callouts on the 675-2C rear panel identify the following connectors:

• HDMI port
• VGA port
• PS/2 Mouse and Keyboard ports
• 3 COM ports
• Digital Output Connector
• Ref Clk In: 5 to 100 MHz
• 10 MHz Reference Clock Output
• External Modulation Input
• 2 SSD slots
• 2 USB 2.0 ports
• 2 USB 3.0 ports
• 2 LAN ports
• Audio IN/OUT

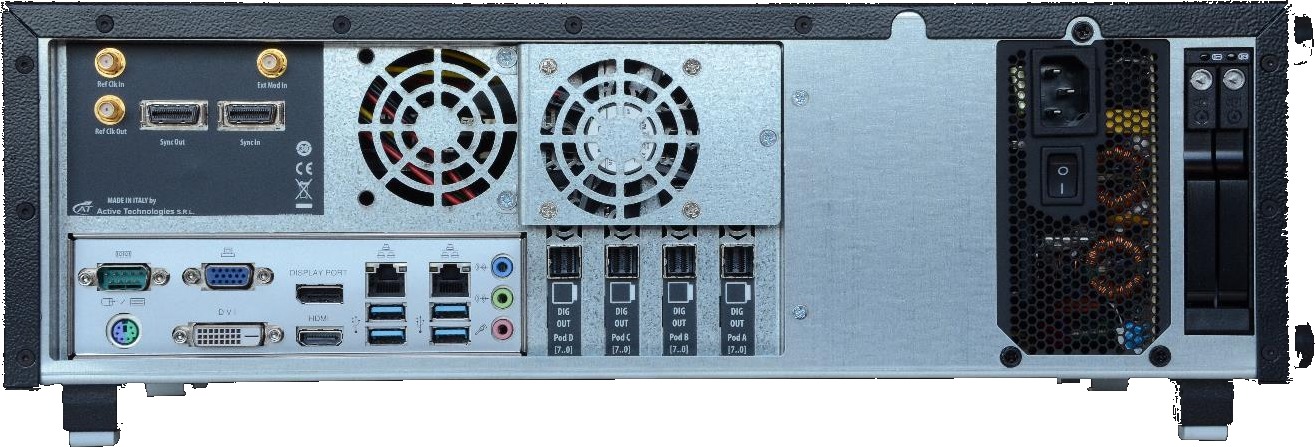

Rear Panel Model 675-4C and Model 675-8C

The callouts on the 675-4C and 675-8C rear panel identify the following connectors:

• Digital Output Connectors: Pod D, Pod C, Pod B, Pod A (Model 675-8C); Pod B, Pod A (Model 675-4C)
• Ref Clk In: 5 to 100 MHz
• 10 MHz Reference Clock Output
• External Modulation Input
• Sync OUT / Sync IN connectors (Model 675-8C only)
• DVI port
• VGA port
• COM port
• PS/2 Mouse and Keyboard ports
• DP port
• HDMI port
• 4 USB 3.0 ports
• 1 Ethernet port
• Audio IN/OUT ports
• 2 slots for removable SSD

External Modulation Input Connector

Important note: this connector is not used by the TrueArb application.

Reference Clock Input Connector

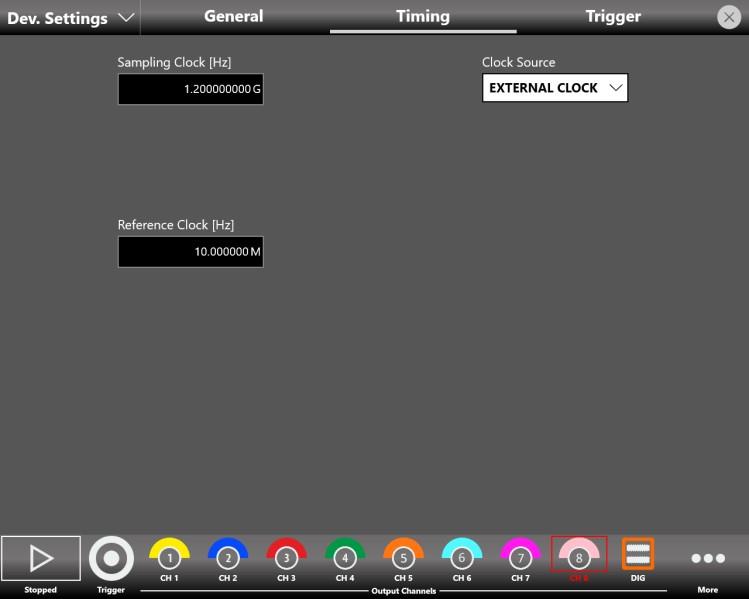

The Model 675 High Performance AWG series can use an external clock source to generate the sampling clock frequency. This feature allows the generator to be synchronized with an external clock. The connector type is an SMA.

Reference Clock Output Connector

This connector outputs the internal 10 MHz reference clock used to synthesize the DAC sampling clock. If the clock source is internal, it produces a signal at 10 MHz; if the source is external, it is disabled. The connector type is an SMA.

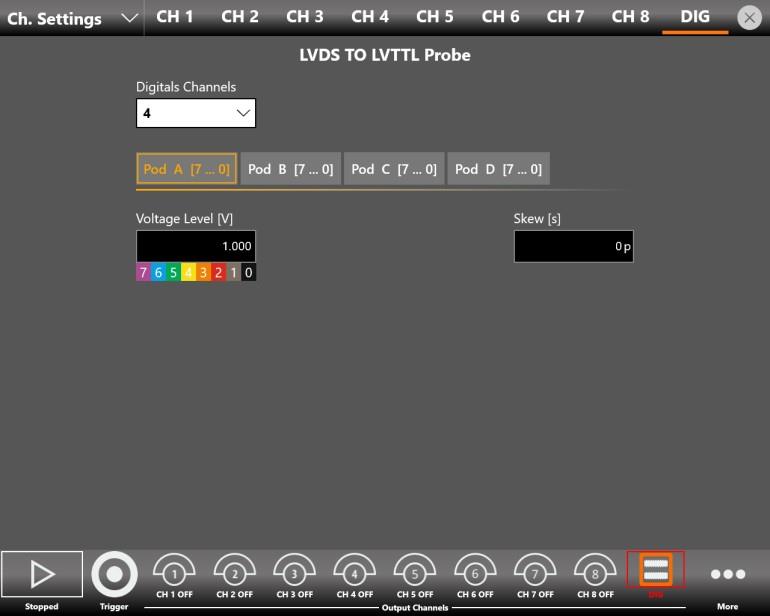

Digital Output Connector

The Model 675 High Performance AWG series has optional 8/16/24/32-bit digital outputs, synchronized with the corresponding analog channels. The digital output pins are native LVDS standard and the maximum update rate is 1.2 Gbps for the Model 675 High Performance AWG series.

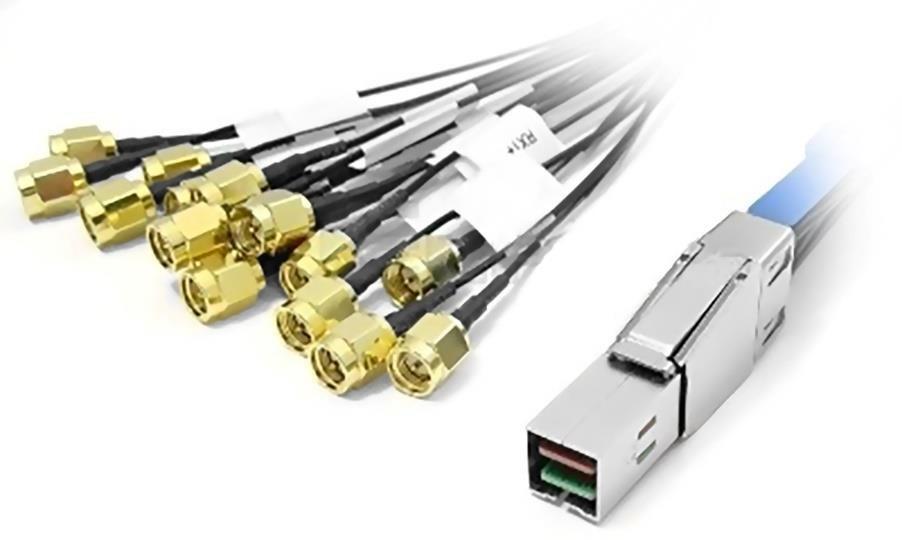

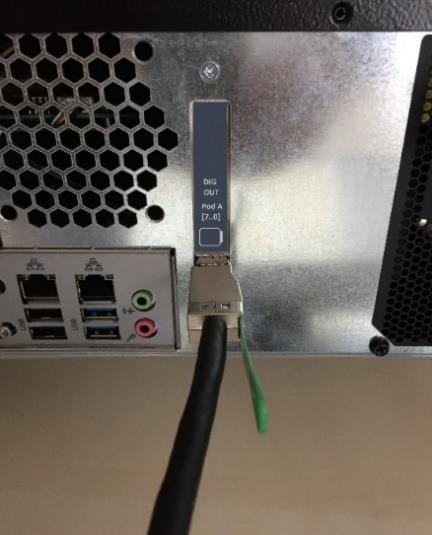

The output connector is a customized version of the Mini-SAS HD standard connector. An optional adapter cable to convert from Mini-SAS HD to SMA is available. Mixed-signal generation is a strong solution for digital design and validation, system synchronization, and DAC/ADC tests.

The digital output connector and the digital cable should be connected as shown below.

Sync In / Sync Out Connectors

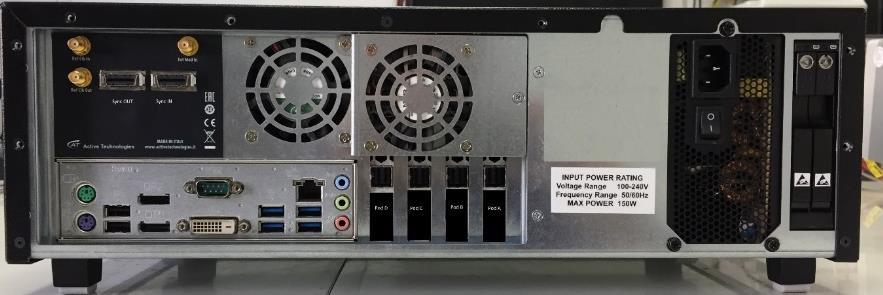

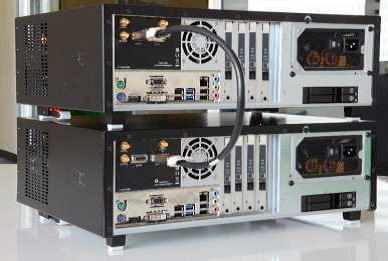

These connectors connect and synchronize multiple instruments. Up to four instruments can be linked together. The Sync In and Sync Out connectors are available on the Model 675-8C only.

Quick Start Guide

If you are a beginner user, you can follow the steps below to generate your first waveform.

Important note: the pictures in this manual may be relative to 2, 4, or 8 channel models. They could therefore be slightly different from the UI that you are using.

1. Connect the power cord and push the front-panel on/off switch to turn on the instrument.

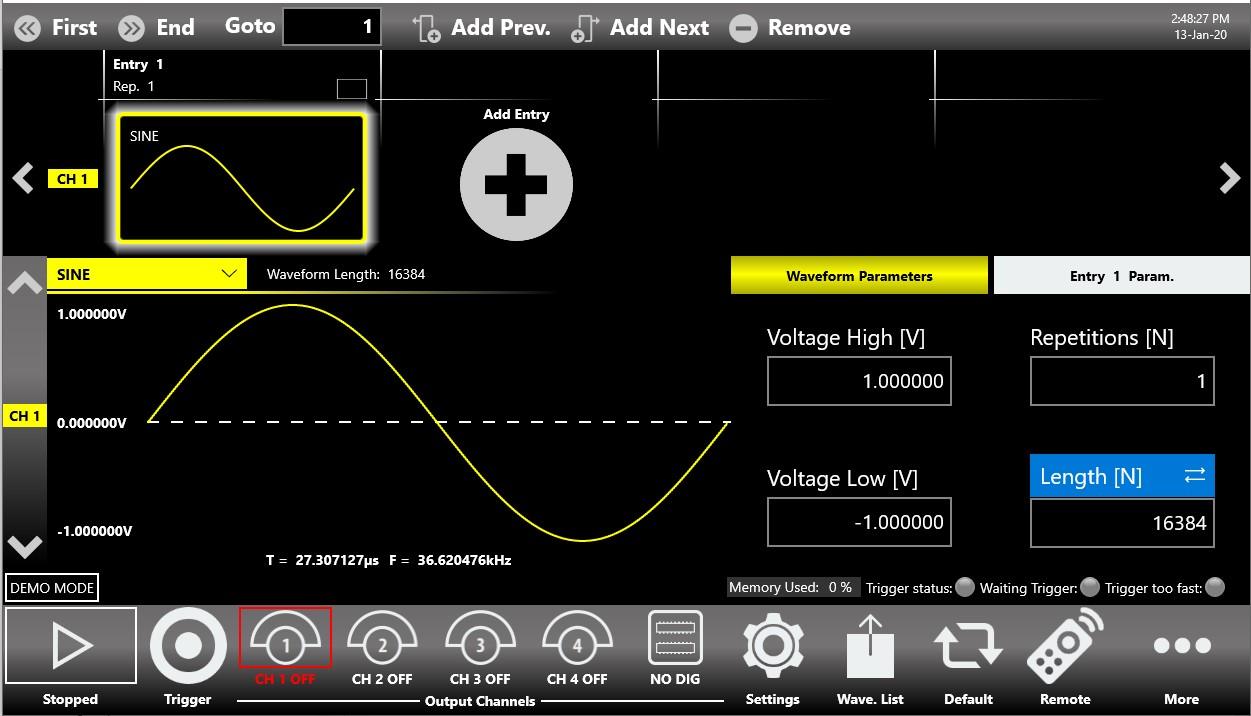

2. Press the AWG/AFG button to switch from the Simple AFG to the Simple TrueArb application. Wait until the Simple TrueArb application has executed and is ready to accept new commands.
3. Connect Output 1 of the instrument to the oscilloscope input with a cable, and select a 50 Ohm load on the oscilloscope input.

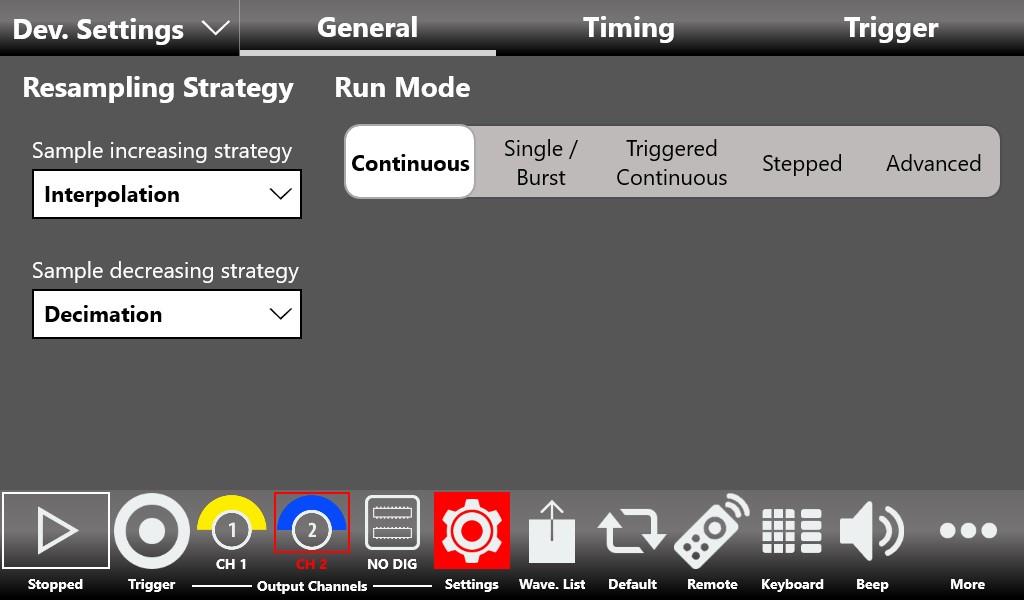

4. Touch the Settings button on the Simple TrueArb UI to open the instrument settings window.

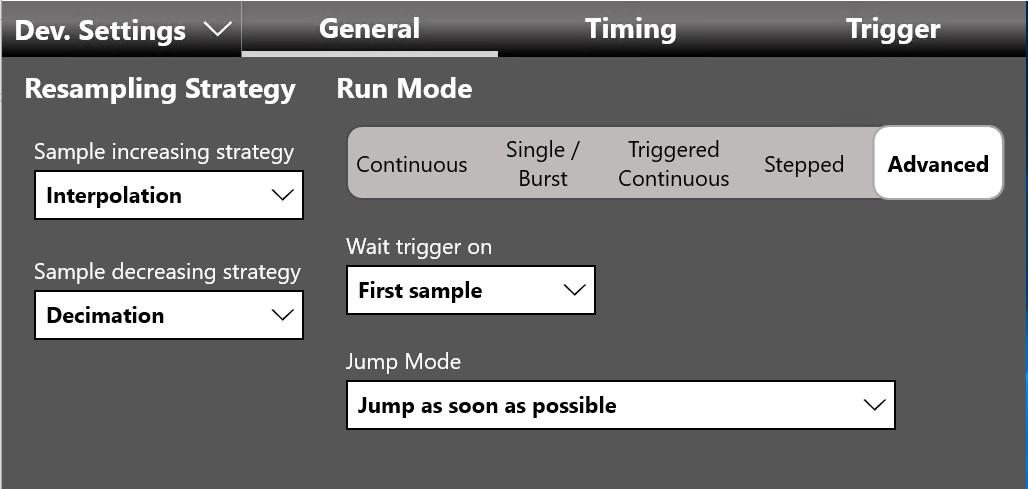

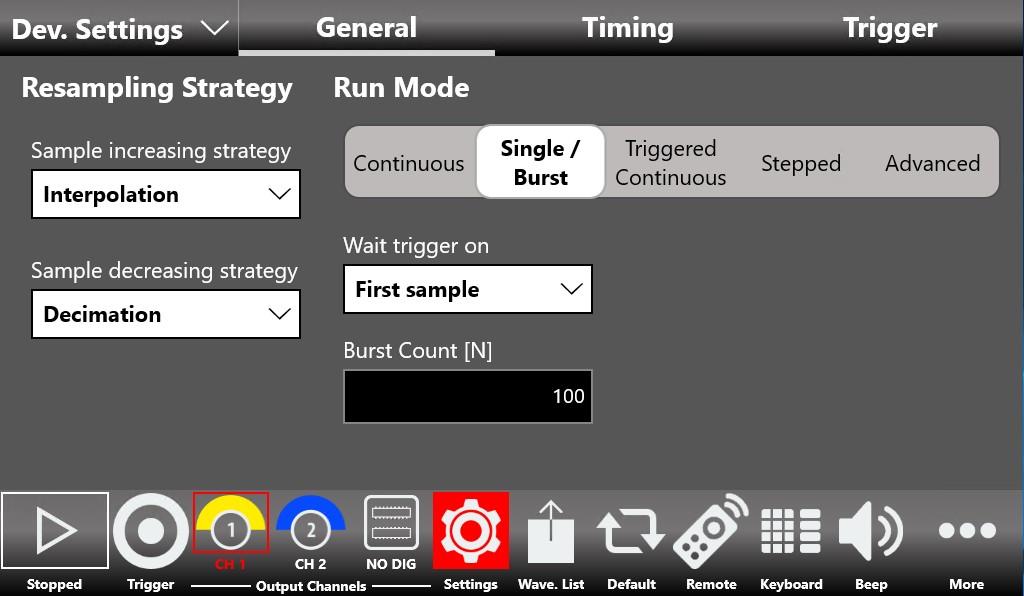

5. Select Dev. Settings, go to the General page, and select Continuous as the Run Mode.
6. Touch the Settings button again to close the instrument settings window.
7. By default, all channels are disabled. This means the outputs are mechanically disconnected from the load and the digital outputs are in the OFF state.
8. The waveform sequencer located at the top of the application starts by default with a single entry holding a sine waveform. Touch the Add Entry button to insert a new entry into Channel 1.

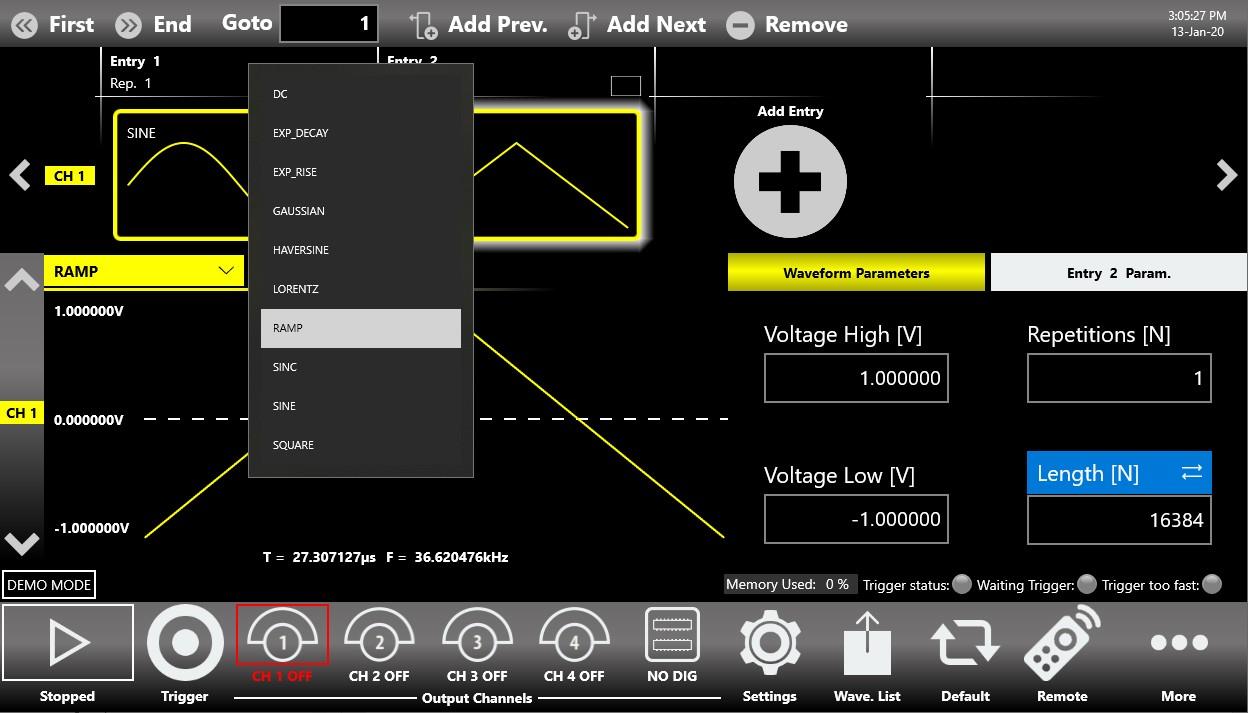

9. Touch the dropdown waveform list and change it from Sine to Ramp.
10. Enable the output channels by pressing the CH1 button at the bottom of the application so that it is no longer grayed out.
11. Touch Entry 1 and set Repetition[N]=2, then touch Entry 2 and set Repetition[N]=3.
12. You can change the Amplitude / Voltage High and Offset / Voltage Low for each entry.
13. Press the RUN/STOP button and check the generated waveforms on the oscilloscope. Entry 1 should be repeated two times and Entry 2 should be repeated three times.

Simple TrueArb Application

The Model 675 High Performance AWG series includes a 7 inch (178 mm) capacitive touch screen and a Simple touch user interface based on a Microsoft Windows 10 platform. You can control instrument operations using one or all of the following entry methods:

• Touch screen and front-panel soft key controls
• Keyboard and mouse

Simple TrueArb Touch UI

The Simple TrueArb UI is designed for touch, driving simplicity in operating an Arbitrary Waveform Generator. It uses the modern interaction techniques found on tablets and smart phones, available on capacitive touch-screen displays. All of the important instrument controls and settings are always one touch away:

• Swipe down to change the output channel.
• Swipe left or right to navigate through the sequencer entries.
• Pinch in and out to zoom the waveform graph.
• Use the touch-friendly virtual numeric keyboard to modify parameters and enter new values on the fly.

It is sometimes necessary to create long waveform files to fully implement a DUT test. In cases where portions of a waveform must be repeated, the waveform sequencer can save a great deal of memory-intensive waveform programming. The Sequencer lets you define the set of waveforms that will be generated, their sequence, the number of repetitions for each waveform, and the generation conditions. The sequencer is mainly used for two purposes:

• Output a waveform longer than the hardware memory.
• Change the output waveform quickly on a specific trigger condition.

A sequence is made of multiple entries. Each entry contains analog and digital waveforms that are properly formatted.

Important note: the Model 675 High Performance AWG series has a unique sequencer for all channels. The length and repetitions of each sequencer entry are therefore common to all output channels. In the same way, all analog and digital outputs share the same sampling clock, so they are synchronized with each other.

User Interface Description

The Simple TrueArb software environment provides easy access to all instrument functionalities and parameters. The TrueArb user interface consists of four main elements:

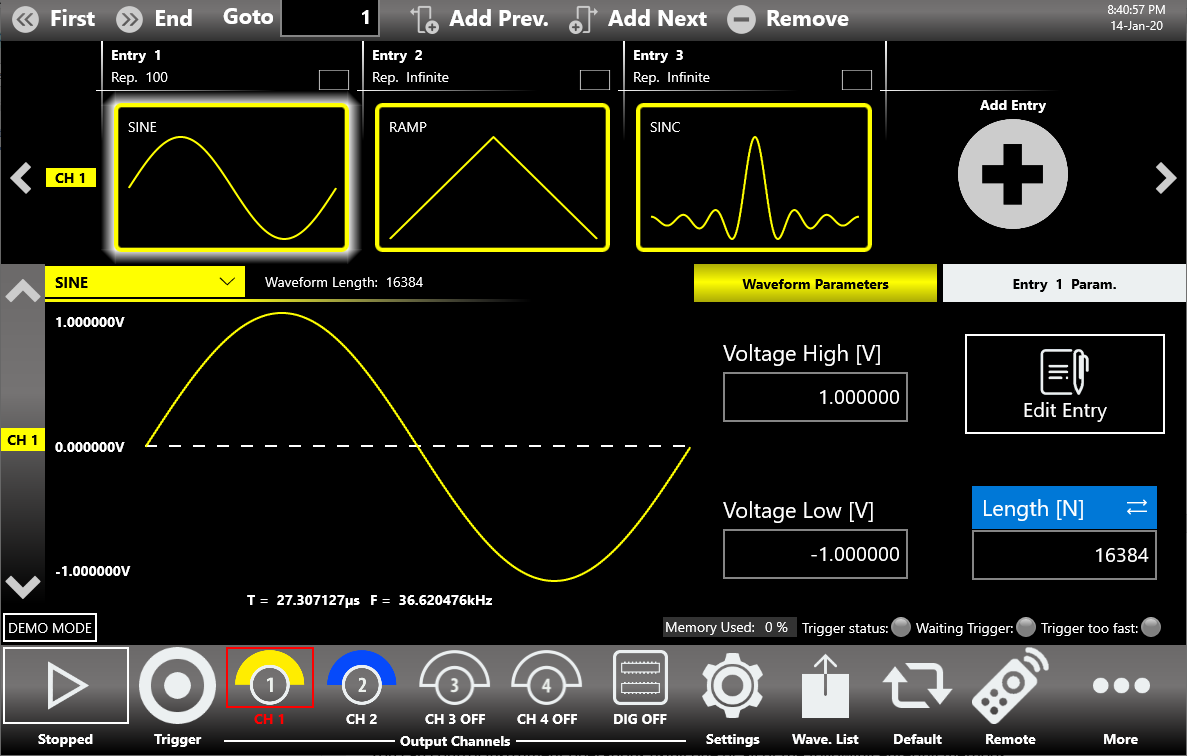

• Sequencer Area: the sequencer contains a list of entries that the user can add or remove to create a custom waveform scenario. Each entry can be repeated or changed in length. The sequencer is common to all channels.
• Sequencer Toolbar: this bar contains elements used to navigate, add, and remove the sequencer items described below.
• Waveform Area: it contains the Waveform Graph and the Waveform Parameters related to the selected entry.
• Command Bar: this bar contains elements to control instrument operations, modify instrument settings, and manipulate waveforms.

The display is a 7 inch (178 mm) capacitive touch screen, and you can use gestures as you would on a mobile phone:

• Swipe up or down on the Waveform Area to switch between the Output Channel 1 and Output Channel 2 pages.
• Swipe left or right on the Sequencer Area to navigate through the sequencer entries.

Sequencer Area

The sequencer starts by default with a single entry holding a Sine waveform. You can touch the Add Entry button to insert a new entry into the sequencer. TrueArb inserts a DC level waveform into the new entry by default.

To modify the waveform of a sequencer entry, touch the waveform dropdown list. It opens and shows all of the waveforms available in the Waveform List, whether predefined or imported.

Important note: if you need to modify the waveform of another channel that is automatically set to a DC level waveform when you add a new entry, use the swipe up or down gesture on the Graph Area, use the swipe up or down gesture on the selected entry item, or press the up or down arrow on the left side of the graph to change the Output Channel page. You can then change the waveform by pressing the dropdown waveform list.

Multiple Channels View

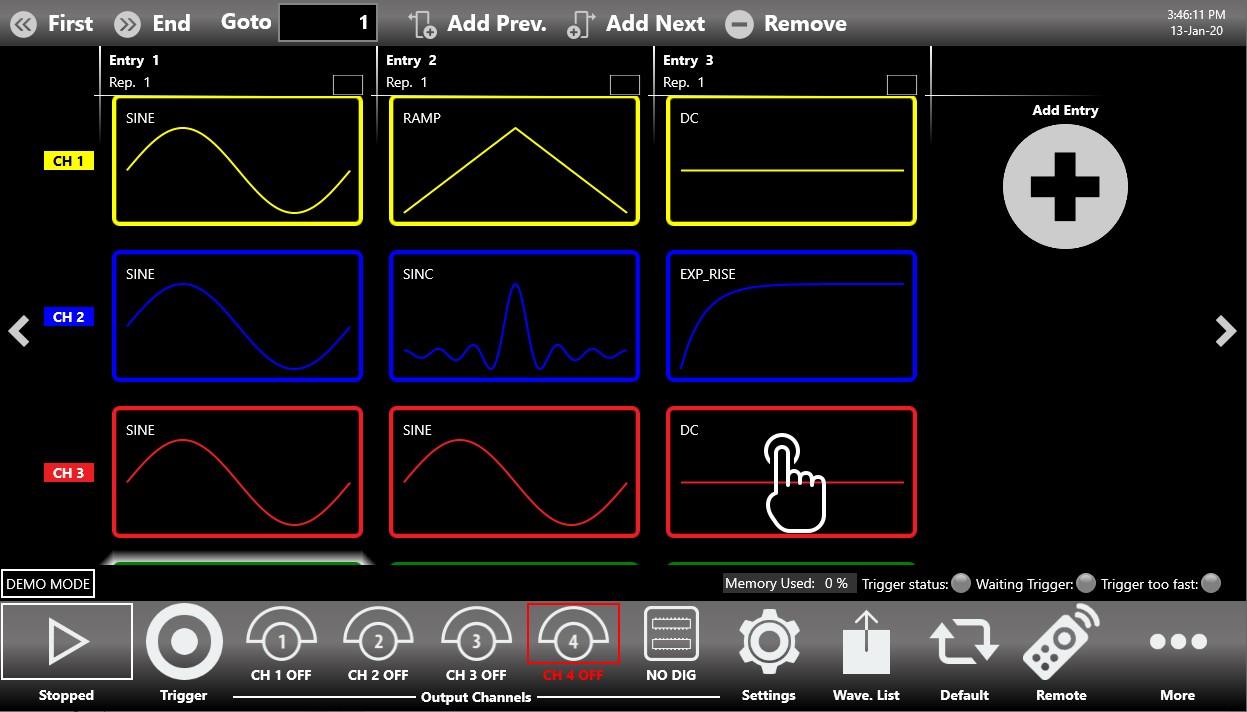

You can touch the selected sequencer item to display more than one channel at the same time. This gives you an overall view of the channels and of the sequencer entries. Use the swipe up or swipe down gesture to scroll through the channels. Touch the selected sequencer item again, or select another item, to collapse the view.

Sequencer Area Items

Each sequencer item contains several pieces of information:

• The index of the entry (Entry N). Each entry is enumerated starting from 1 up to 16384.
• The name of the waveform assigned to the selected output channel in that entry. Each output channel can have a different waveform assigned to the same sequencer entry.

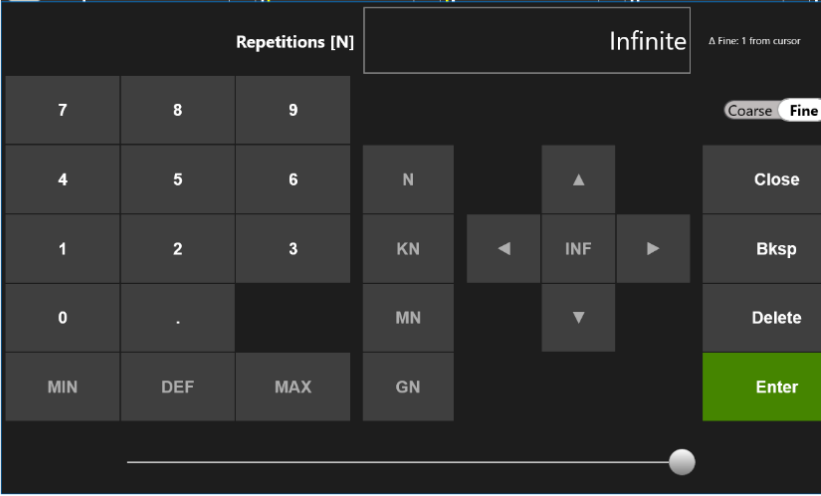

• The number of repetitions. Each entry can be repeated from 1 up to 4294967295 times, or infinite times using the INF button.

If you touch the selection button in the entry, a second bar opens that lets you:

• Select all the entries.
• Deselect all the entries.
• Remove the selected entry.
• Close the bar.

Sequencer Toolbar

The sequencer toolbar contains several buttons to navigate and control the sequencer, described in detail below.

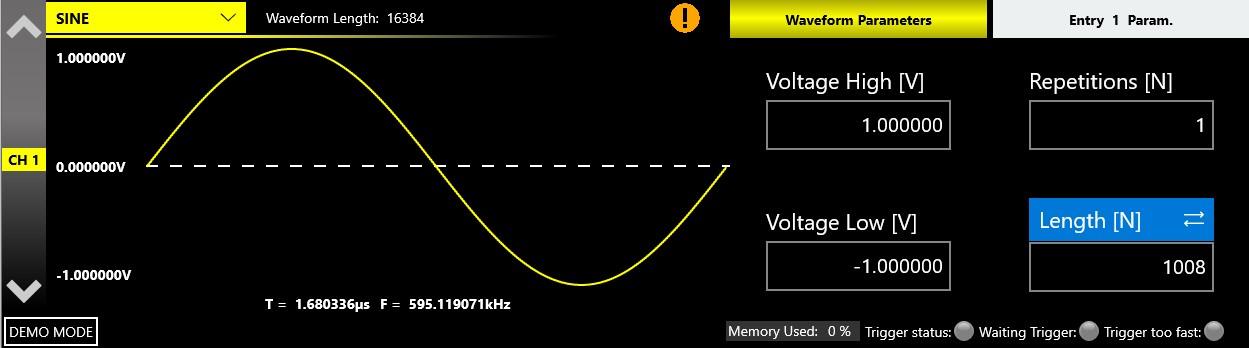

Sequencer Warnings

Warnings are shown in the sequencer toolbar when one or more channel waveforms have been assigned to an entry with a different length. The upper warning is a general warning that notifies you of this condition. Additional warnings are displayed inside the entries where the warning condition is detected. In the presence of warnings, the application will modify the mismatching waveforms during execution to match the entry length, using the strategy specified in the Sample increasing/decreasing strategy parameter (Device Settings, General page).

Waveform Area

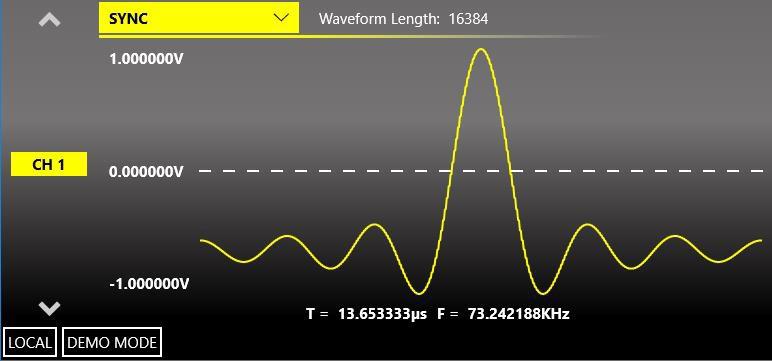

This area is divided into two main sections: the Waveform Graph area, which contains a graphical representation of the channel waveform, and the Waveform Parameters area. The Waveform Graph describes the waveform assigned to the current channel and sequencer entry. The waveform is described by:

• The waveform shape.
• The waveform duration and frequency.
• The waveform amplitude.
• The waveform length in terms of number of samples, as originally defined in the Waveform List.

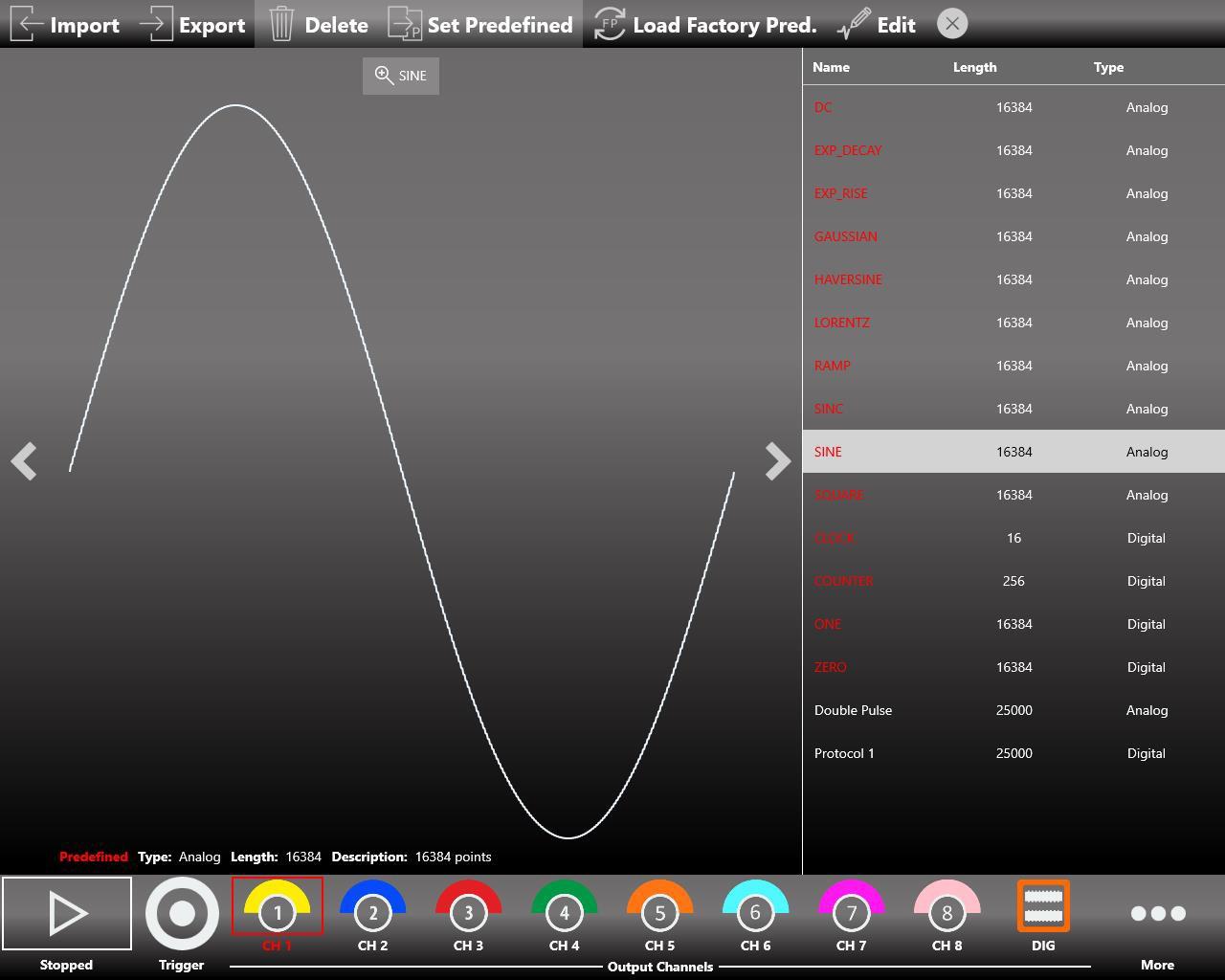

The Waveform Parameters area is divided into two parts. The left part contains the vertical parameters of the selected waveform in terms of Voltage High[V] / Voltage Low[V], or Amplitude[Vpp] and Offset[V] via the Change Format button. These two parameters can be specified independently for each sequencer entry and for each output channel.

The right part contains the Repetitions[N] and the Entry Length[N] for the selected sequencer entry. These two parameters are specific to the selected sequencer entry. In particular, Repetitions[N] is the number of repetitions of the selected sequencer entry. These parameters are common to all channels in the same sequencer entry.

Note: Repetitions[N]=1 means that the waveform is executed only once.

You can touch the parameter area to open the virtual numeric keypad, then edit the parameter value and its unit of measure.

The keypad items are described below:

1. Parameter Name and Value: this area displays the parameter name, value, and unit of measure.
2. Numeric Keypad: this area contains the keys to edit the number displayed in area 1. The [+/-] key toggles the sign of the number being entered and can be pressed at the end of number editing. Touch the MIN and MAX buttons to set the minimum and maximum allowed values for the selected parameter. Use the DEF button to set the default value.
3. Arrows: the left and right arrows move the cursor or select the digit position, like the arrows on the front panel. The up and down arrows modify the value.
4. Measurement Unit: after typing the numeric value, these buttons apply a different multiplier of the measurement unit. When a measurement unit is pressed, the value is applied on the fly.
5. Coarse / Fine: the coarse/fine button modifies the granularity of the increment. You can increment or decrement the selected parameter using the up and down arrow buttons or the rotary knob on the front panel. When Fine is selected, the increment is 1 unit at the current cursor position. When Coarse is pressed, the Delta increment is displayed in the parameter area and the parameter value changes in steps of the selected increment. You can keep the knob pressed and rotate it to the right or left to change the Delta Coarse increment.
6. Control Buttons: the Close button closes the virtual keypad without applying any changes to the instrument, while the Enter button confirms the changes and applies them to the instrument. The Bksp (backspace) button deletes erroneous key presses, and the Delete button deletes all digits of the text box.
7. Horizontal scrollbar: the horizontal scrollbar quickly changes the selected value. Its position specifies the value between the allowed minimum and maximum. The increment or decrement values entered by the rotary knob or scrollbar are applied to the instrument on the fly.

Waveform Warnings

A warning is shown in the waveform graph when the channel waveform length differs from the entry length. The upper warning is a general warning that notifies you of this condition. Additional warnings are displayed inside the entries where the warning condition is detected. In the presence of warnings, the application will modify the mismatching waveforms during execution to match the entry length, using the strategy specified in the Sample increasing/decreasing strategy parameter (Device Settings, General page).

Status Toolbar

• Memory Used indicator: shows the percentage of memory used to store the waveforms placed in the sequencer.
• Trigger Information indicator: provides information on the trigger signal condition.
  • The Trigger status LED notifies you that the instrument has received a trigger signal.
  • The Waiting Trigger LED notifies you when the instrument is waiting for a trigger signal.
  • The Trigger too fast LED notifies you that the trigger event has been latched, but the trigger frequency is too high and the instrument cannot be rearmed before the previous trigger event completes. In this situation, some trigger events may be lost.

Command Bar

The command bar contains several touch buttons to control the instrument. Its layout changes depending on the model. On the 4 and 8 channel models, some buttons can be located in the More menu instead of in the Command Bar. A detailed description of this bar is provided below.

Settings

Touch the Settings button to open the page covering Device Settings, Channel Settings, Marker Settings, and Sequencer Settings.

Device Settings

The device settings are common to the whole instrument. They are grouped into General settings, Timing settings, and Trigger settings.

General

Run Mode

The Run Mode defines the sequencer execution flow.

Wait Trigger On

Defines the behavior of the output during the wait-trigger condition in the triggered Run Modes. If "First sample" is selected, the first waveform sample of the next entry is held until the next trigger is received. If "Last sample" is selected, the last waveform sample of the current entry is held until the next trigger is received.

Resampling Strategy

Defines the strategy used to adapt the original waveform length to the sequencer entry length.

The Sample increasing strategy parameter defines the strategy used when the original waveform length is shorter than the sequencer entry length.

The Sample decreasing strategy parameter defines the strategy used when the original waveform length is longer than the sequencer entry length.

Jump Mode

This parameter is available in Advanced Run Mode only. It defines the behavior of the output when a "Jump To" or a "Pattern Jump" event happens. If "Jump as soon as possible" is selected, the sequencer jumps to the selected entry as soon as possible, without waiting for the completion of the repetitions of the current waveform execution; it always jumps at the end of a period of the current waveform. If "Jump when all repetitions have been executed" is selected, the sequencer jumps to the selected entry after the current waveform repetitions complete.

Advanced Run Mode

The Advanced Run Mode lets you change the execution of the sequence using loops, conditional and unconditional jumps (Jump To, Pattern Jump, and Go To features), and events. It can be used to create long and complex waveform scenarios.

To start working with Advanced Mode:

• In the Device Settings, General page, select Advanced as Run Mode.
• The sequencer page changes its standard layout and the Edit Entry button appears in the Entry Parameters area.
• Press the "Edit Entry" button on the Sequencer Area to open the Entry Editor Table.

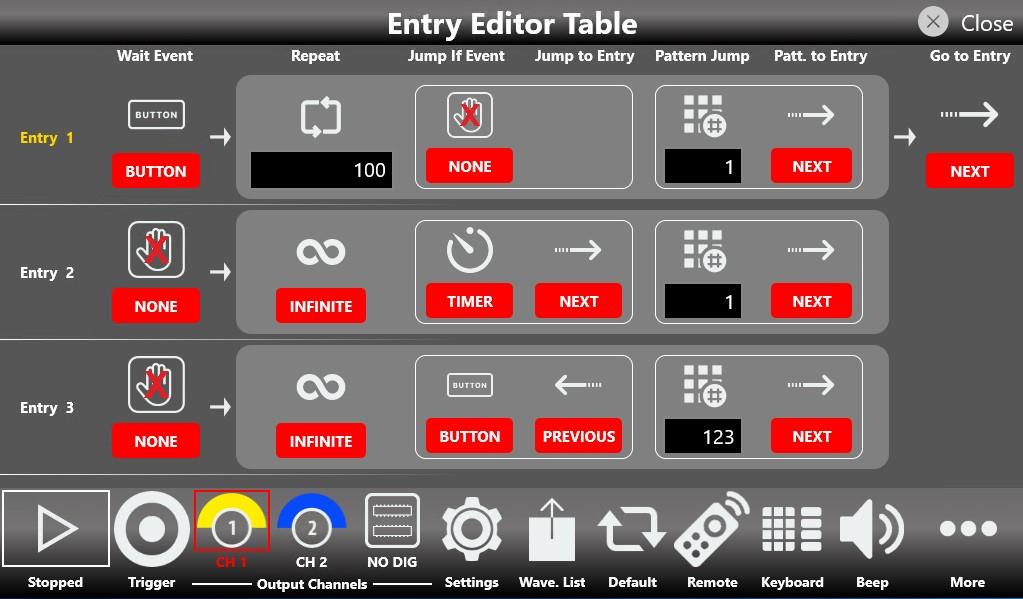

Entry Editor Table

This table lets you change all the parameters associated with a selected entry, with the exception of the Length, which must be set on the Sequencer Area page. Use the swipe up or down gesture to scroll through the table elements, and touch the table icons to access the available options. The first column holds the Entry numbers that define the play sequence; these are used as the targets for the Jump To, Pattern Jump, and Go To features. The selected entry is highlighted in yellow.

As an example, an entry configured with Wait Event = Button, Repeat = 10 times, Jump If event = Timer to Entry 2 (Next), Pattern Jump Code = 123 to Entry 4, and Go To Entry = 3 can be represented as a flow chart.

Timing

• Sampling Clock[Hz]: specifies the Arbitrary Waveform Generator sample rate.
• Sampling Clock Source: specifies the clock source as Internal or External. If Internal Clock is selected, the sampling clock is synthesized using a reference clock generated internally. If External is selected, the sampling clock is synthesized using the clock provided externally to the Ref. Clock In SMA connector. When External is selected, the Reference Clock[Hz] control appears and the user must specify the reference clock frequency in hertz.

Trigger

The Trigger settings are common to all channels.

Channel Settings

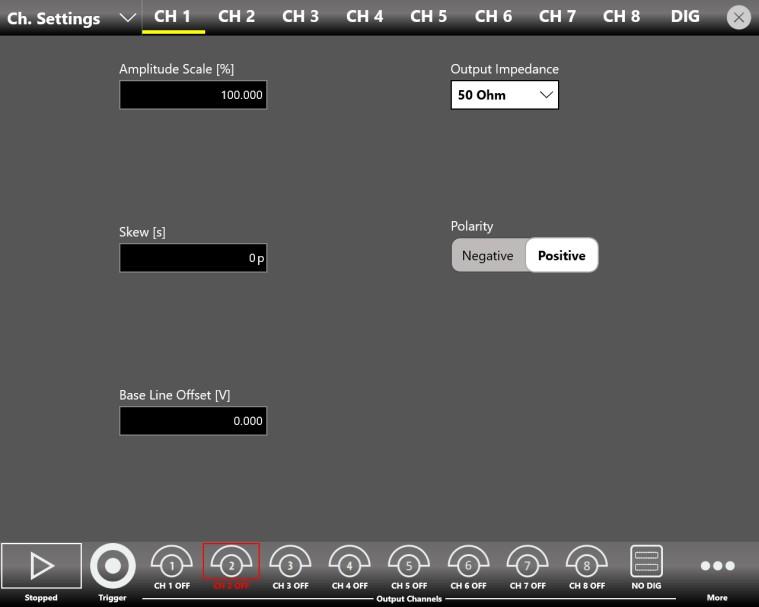

The Channel Settings page manages the parameters of the analog and digital channels.

Analog Channels (CH 1, CH 2, ..., CH N)

• Amplitude Scale[%]: can be modified at run time to adjust the waveform amplitude while the instrument is running. It applies to all waveforms in the sequencer. It is expressed as a percentage with a range of 0% to 100%. 100% means the waveform keeps its original amplitude.
• Skew[s]: defines a fine time delay among the analog output channels to de-skew the outputs. The resolution is about 3 ps and depends on the sampling frequency, as does the maximum time skew allowed. The edited value is automatically rounded to the closest value the hardware can implement.
• Output Impedance: defines the output impedance of the analog outputs. It can be set to 50 Ohm or Low Impedance (5 Ohm).
• Polarity: when "Negative" is selected, the analog output signal is inverted.
• Base Line Offset[V]: defines the DC offset value added to the output signal relative to the ground level.

Digital Channels

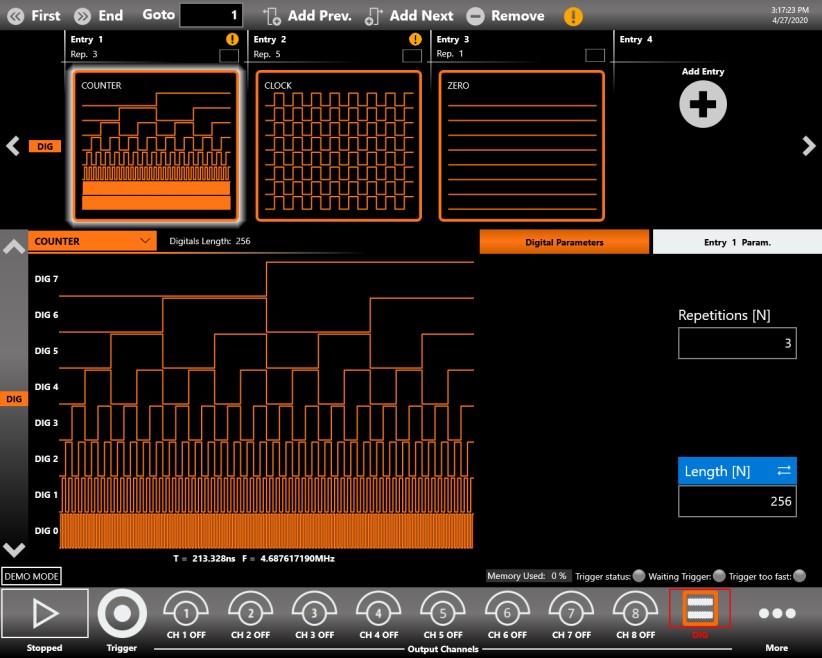

• Digital Channels: it is possible to enable up to 8 digital lines on the two-channel model, up to 16 on the four-channel model, and up to 32 on the eight-channel model. If the Digital Channels number is 0, the DIG button is disabled. If two or more digital lines are selected, the DIG button can be touched to enable or disable the digital lines. Once the digital channels are enabled (two or more digital channels selected), the Digital Channels page becomes accessible to define the digital waveform sequence, as for the analog channel page.

Important note: enabling the digital lines causes a decrease of resolution in the analog output channels, as shown in the following table.

• Voltage Level[V]: defines the output voltage level (in volts) of the LVDS to LVTTL Digital Probe. It takes effect only when the Digital Option is installed in the instrument and the LVDS to LVTTL probe is connected.
• Skew[s]: sets the delay between the analog channels and the digital channels to de-skew the analog and digital outputs. The skew between analog and digital channels depends on the sampling frequency: the minimum skew is 1 clock cycle at the sampling frequency. The edited value is automatically rounded to the closest value the hardware can implement.

Marker Settings

On the marker output page, you can set the behavior and parameters of the Marker signal provided at the front-panel MARKER OUT BNC connectors. The available Marker signals depend on the instrument model; refer to the Marker Output section for a complete description. On the Model 675-4C and Model 675-8C models, press the marker button to change the selection of the Marker signal.

Marker Mode

• Marker Skew[s]: defines the skew between the marker and the analog channels. The resolution is 78 ps. The edited value is automatically rounded to the closest value the hardware can implement.
• Voltage Level[V]: sets the marker high-level voltage. The low level is fixed to 0 V.

Sequencer Settings

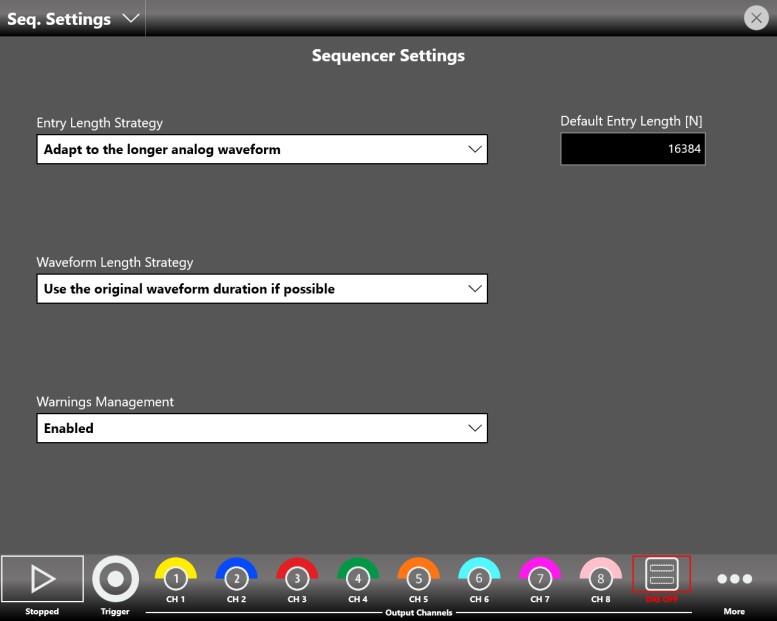

The Sequencer Settings page contains parameters that define the strategy for managing the length of the sequencer entries relative to the length of the channel waveforms defined for each entry.

Entry Length Strategy

Waveform Length Strategy

This strategy applies only to imported waveforms that carry sampling-rate information, such as .trc files and files imported or created from the Waveform Editor.

Warning: if you change the instrument sampling rate, the entry length is not automatically recalculated. You must remove the imported waveform from the sequencer and insert it again.

The length of each entry can be manually and individually overwritten by changing the Entry Length [N] parameter in the Waveform Parameters section of the Waveform Area. If any channel waveform of the entry changes, the entry length is recalculated using the strategy specified in the Sequencer item Length Strategy parameter.

Default Entry Length [N]

Specifies the length of the sequencer entries when the Sequencer item Length Strategy parameter is set to "Apply the default value".

Warnings Management

This parameter enables or disables the warnings shown in the Sequencer Toolbar and in the Waveform Area that notify you when one or more channel waveforms have been assigned to an entry with a different length. This situation causes the application to modify the mismatching waveforms during execution to match the entry length, using the strategy specified in the Sample increasing/decreasing strategy parameter (Device Settings, General page).

When the "Consider a warning as an error" option is selected, the application checks whether one or more sequencer entries have a length that differs from the selected waveform length. If this condition is met, the instrument will not start. For example, if you insert a SINE waveform with a length of 16384 points into a sequencer entry with Length[N]=1024, pressing the Run button returns a "Start Failed!" error message. In that case you must change the entry Length[N] parameter to 16384 to run the instrument.

Waveform List

Press the Wavef. List button to open the Waveform List page, which collects all the waveforms available in the current configuration.

The Model 675 High Performance AWG series ships with a set of Factory Predefined Waveforms that are common to all configurations. Predefined waveforms are shown in red on the list. Imported waveforms are shown in gray.

How to Import an Analog or Digital Waveform From a File

The Import button lets you import data from a file to create a new waveform. The supported file formats are:

1. Press the Import button. The Windows File Browser opens. Select the TXT or ZIP file you want to import. The Import page opens.

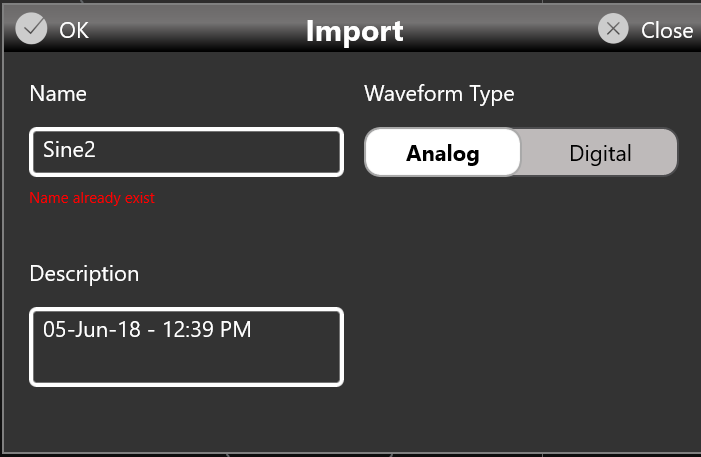

2. In the Import dialog, the Name and Description fields are automatically filled with default values.
3. Select the Waveform Type you want to import, either Analog or Digital.
   • If Analog is selected, the waveform data is interpreted as a single column of values (the header is not allowed). The imported waveform is normalized so you can easily adjust its amplitude and offset using the waveform parameters in the graph area of the sequencer.
   • If Digital is selected, each data point is represented by a 32 bit unsigned integer where the value of each bit is transferred to the corresponding digital line (Bit 0 to Digital Line 0, Bit 1 to Digital Line 1, and so on).
4. Press OK to confirm or Close to cancel the operation.

How to Export an Analog or Digital Waveform to a File

• Select an analog or digital waveform on the waveform list.
• Press the Export button.
• The exported waveform is stored in a proprietary binary .zip file format that can be shared with other instruments running the same application.
• You can also export predefined waveforms.

How to Promote an Analog or Digital Waveform to a Predefined

• Select an imported analog or digital waveform on the waveform list.
• Press the Promote button.
• The waveform appears on the list in red to show that it has been promoted to predefined.

How to Edit an Analog or Digital Waveform

• Prerequisite: Waveform Editor software installed.
• Select an analog or digital waveform on the waveform list.
• Press the Edit button to launch the Waveform Editor.
• Refer to the Waveform Editor user manual for a complete explanation of editing and creating waveforms.

How to Create a New Analog or Digital Waveform

• Prerequisite: Waveform Editor software installed.
• Press the Waveform Editor button in the More menu to launch the Waveform Editor.
• Refer to the Waveform Editor user manual for a complete explanation of editing and creating waveforms.

Configurations

A configuration contains the data, in proprietary format, relative to the channel waveforms inserted into the sequencer along with all the instrument and sequencer parameters.

Save As

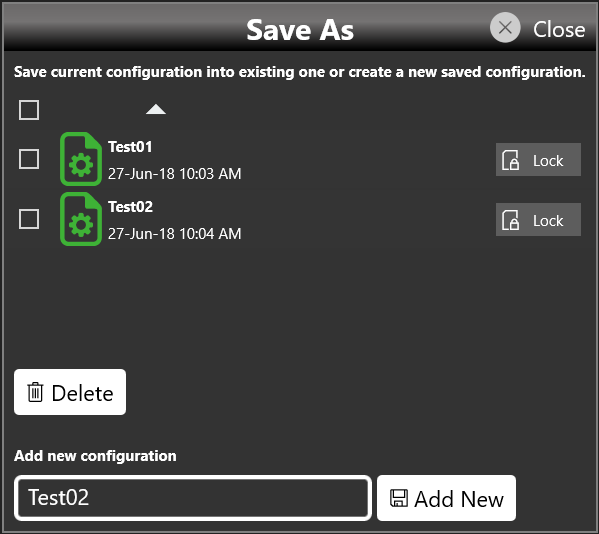

A configuration can be saved with the Save As button, which opens the dialog box shown below. The configuration is saved to the configuration list that can be accessed by the Load From dialog box.

On this page you can add a new configuration entry or overwrite an existing one. To create a new configuration entry, write a name in the text box at the bottom of the page and click Add New.

Export Configuration

If you touch the Export Configuration button, a proprietary binary .zip file relative to the current configuration is exported. The exported file can be used to share configurations between different users or instruments.

Load From

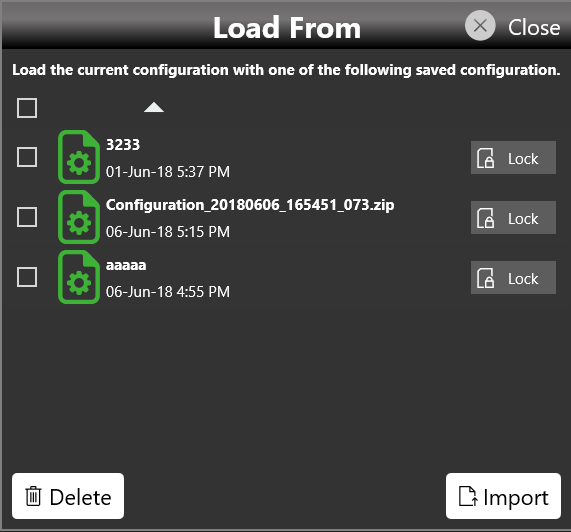

Touching the Load From button in the More menu opens a page that shows the list of all saved and imported configurations. If you select an existing configuration, you load all of its settings into the instrument.

On the Load From page you can also manage the configuration list: you can delete, import, or lock a configuration. When a configuration is locked it cannot be deleted or overwritten.

If you touch the Import Configuration button, you can import a configuration file that comes from a different machine or user. The imported configuration is inserted into the Load From list.

Remote Control

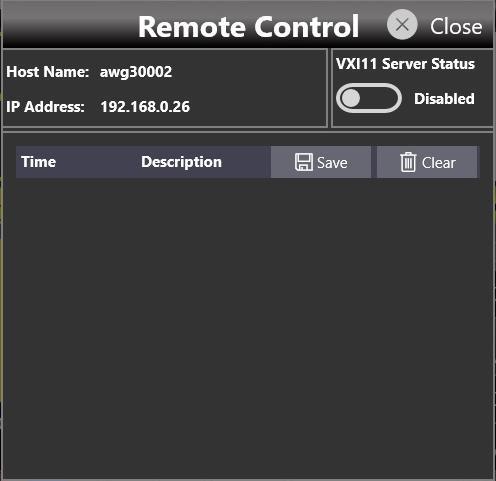

The Remote button, located in the Command Bar, opens the page of the SCPI server. This page lists all commands received by the SCPI server and its replies. If the text of a command is displayed in green, the command is correct and has been accepted by the server. If the text of a command is displayed in red, the command is incorrect and has not been accepted by the server.

At the top of the page, the Host Name and IP Address of the instrument are shown. The slider on the right side of the page enables or disables the SCPI server. It is enabled by default.

Remote Desktop Connection

To connect to the instrument using a Remote Desktop connection, enter the following credentials:

Calibration & Diagnostic

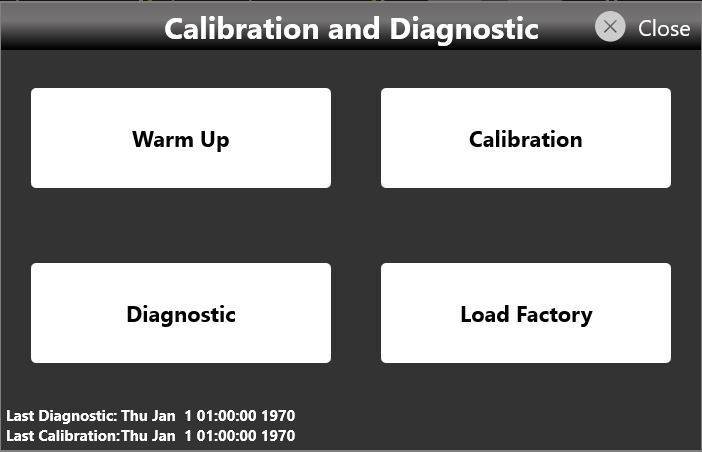

The Calibration button in the More menu opens the Calibration and Diagnostic page.

The actions performed by the buttons on this page are described below:

Multi-Instrument System

You can connect up to four Model 675-8C units to build a system with 32 synchronized analog channels and up to 128 digital channels. To set up a Multi-Instrument system:

• Turn off the instruments.
• Select the instrument you want to use as Master. The other units are considered Slave.
• Using the RIDER-AWG-SYNC cable, connect the Master Sync Out connector to the Slave Sync In connector on the rear of the instruments.

Once all the instruments are connected, turn them on and launch the Simple TrueArb application.

Setting Up and Starting Generation

The following steps describe how to set up a Multi-Instrument system and start generation across two devices.

1. On the Master and Slave units, launch the Simple TrueArb application.
2. On the Master unit (the one with the Sync OUT port connected), a new Master Multi-Instrument bar appears.
3. On the Slave unit (the one with the Sync IN port connected), a new Slave Multi-Instrument bar appears.
4. Slide the Capture switch on the Master Multi-Instrument bar.
5. The lock icon changes to show that a device has been captured. The number of captured devices is now 1.
6. On the Slave device, the lock icon also changes to show that the instrument has been captured.
7. Press Start on the Master device. Both the Master and the Slave instruments start synchronously. A lock symbol on the Start button of the captured instrument indicates that it is controlled by the Master device.
8. To stop generation, press the Stop button on the Master device.
9. To unlink the instruments, slide the Release switch on the Master device. The two devices can then be controlled independently from their respective interfaces.

Master Multi-Instrument Bar

On the Master device, a new Multi-Instrument bar appears when the unit detects a connection with other Model 675-8C units through the RIDER-AWG-SYNC cable.

Slave Multi-Instrument Bar

On the Slave device, a new Multi-Instrument bar appears when the unit detects a connection with other Model 675-8C units through the RIDER-AWG-SYNC cable.

License

The License button in the More menu opens the License page, which manages the license options.

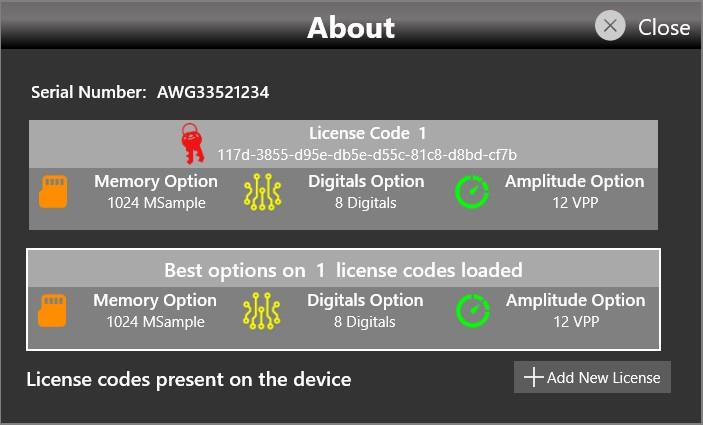

Touching the Add New License button lets you enter a new license key to enable any of the following features.

Model 675-2C Options

Model 675-4C Options

Model 675-8C Options

Appendix A: Digital Option & Accessories

When you buy the digital option, you receive a software license key and one Mini-SAS HD cable 3.3 ft (1 m) long.

Two additional accessories are available for use with the digital outputs. These accessories must be purchased separately because they are not included in the digital option:

• AT-LVDS-SMA8 cable. A Mini-SAS to SMA cable adapter. It converts the 8 digital LVDS outputs of the Mini-SAS connector into 16 SMA connectors (2 SMA per LVDS pair).
• AT-DTTL8. A probe that connects to the Mini-SAS HD cable provided with the digital license and converts the LVDS outputs of the Mini-SAS HD connector into LVTTL standard signals.

The end of the Mini-SAS HD cable provided with the digital option mechanically mates with standard Mini-SAS HD connectors, while the electrical connection differs from the standard. If you need to connect the Mini-SAS HD cable provided with the digital option to your custom PCB, you can use standard Mini-SAS HD connectors (for example, Amphenol 10112626-101LF, Amphenol 10112632-101LF, Amphenol 10120666-101LF, TE Connectivity 2198484-1, TE Connectivity 2227580-1), but you must respect the electrical connection shown below. The connection of the AT-LVDS-SMA8 cable adapter (Mini-SAS HD to 16 SMA) is also described in the table.

Mini-SAS HD Connector Pinout

AT-LVDS-SMA8

The AT-LVDS-SMA8 cable adapter converts from the Mini-SAS HD connector on the rear of the instrument to 16 SMA connectors. This cable ensures the signal integrity and flexibility required to transmit the high-speed digital signals provided by the Model 675 High Performance AWG series.

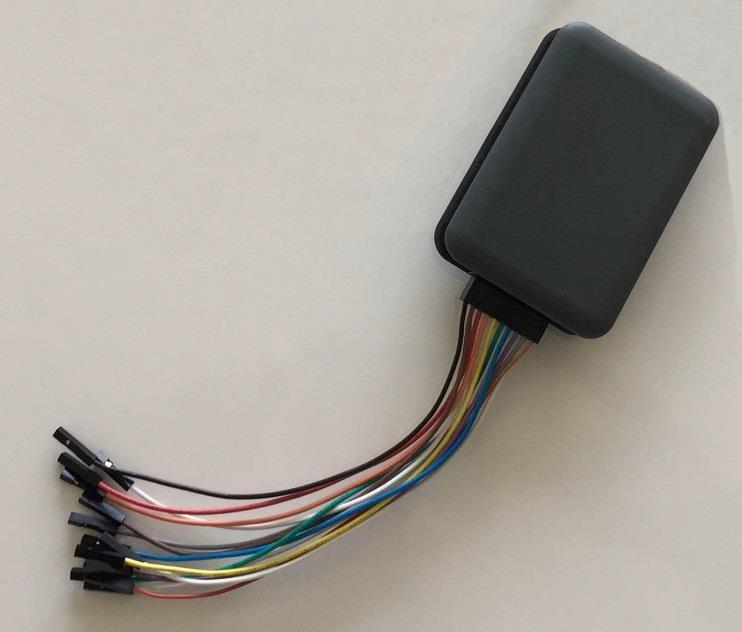

AT-DTTL8

The AT-DTTL8 is an 8-bit LVDS to LVTTL converter that converts the LVDS differential signals provided by the Mini-SAS HD digital connector to standard LVTTL single-ended signals. The probe can be programmed by software to set the high voltage level of the TTL signals from 0.8 V to 3.8 V. The AT-DTTL8 probe maximum bit rate is 125 Mbps at 0.8 V and 400 Mbps at 3.6 V.

Certifications

Berkeley Nucleonics Corporation certifies compliance with the following standards as of the time of publication. Please see the EC Declaration of Conformity document shipped with your product for current certifications.

EMC Compliance

EC Declaration of Conformity, EMC

The instrument meets the intent of EC Directive 2014/30/EU for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications listed in the Official Journal of the European Communities:

EN 61326-1:2013, EN 61326-2-1:2013, EMC requirements for electrical equipment for measurement, control, and laboratory use.

Electromagnetic Emissions

Electromagnetic Immunity

Safety Compliance

EC Declaration of Conformity, Low Voltage

The instrument meets the intent of EC Directive 2014/35/EU for Product Safety. Compliance was demonstrated to the following specifications listed in the Official Journal of the European Communities:

The design of the instrument has been verified to conform to the following limits put forth by these standards:

• Mains supply connector: Overvoltage Category II. The instrument is intended to be supplied from the building wiring at utilization points (socket outlets and similar).
• Measuring circuit terminals: No rated measurement category. The terminals are not intended to be connected directly to the mains supply.
• Unit: Pollution Degree 2, an operating environment where normally only dry, non-conductive pollution occurs. Temporary conductivity caused by condensation should be expected.

Environmental Compliance

End-of-Life Handling

The instrument is marked with the WEEE symbol to indicate that it complies with the applicable European Union requirements of Directives 2012/19/EU and 2013/56/EU on Waste Electrical and Electronic Equipment (WEEE) and Batteries. The instrument is subject to disposal and recycling regulations that vary by country and region. Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles.

Restriction of Hazardous Substances (RoHS)

This instrument and its accessories conform to the 2011/65/EU RoHS2 Directive.
